Know these first: reactive policies, RNNs, MDP, POMDP Topics: RNNs, transformers, ViTs, LLMs, VLMs, VLAs (basic) Before the session: Attention Is All You Need (Vaswani et al., 2017); the ACT paper (Zhao et al., 2023); the FAST paper (Pertsch et al., 2025); pen and paper for the attention example.

Core notes

0. Glossary

Term Meaning
Token One unit the model reads: a subword, an image patch, or an action value
Embedding Vector of numbers representing a token
Autoregressive Generates one token at a time, each conditioned on all earlier ones
Policy Maps what the robot sees to what it does
Trajectory One full run: observation, action, observation, action, …
Hidden state Fixed-size summary of the past that an RNN carries forward
KV cache Stored keys and values of past tokens, so they are not recomputed each step
Prefill / decode Reading the prompt all at once / generating tokens one by one

1. Why one frame is not enough

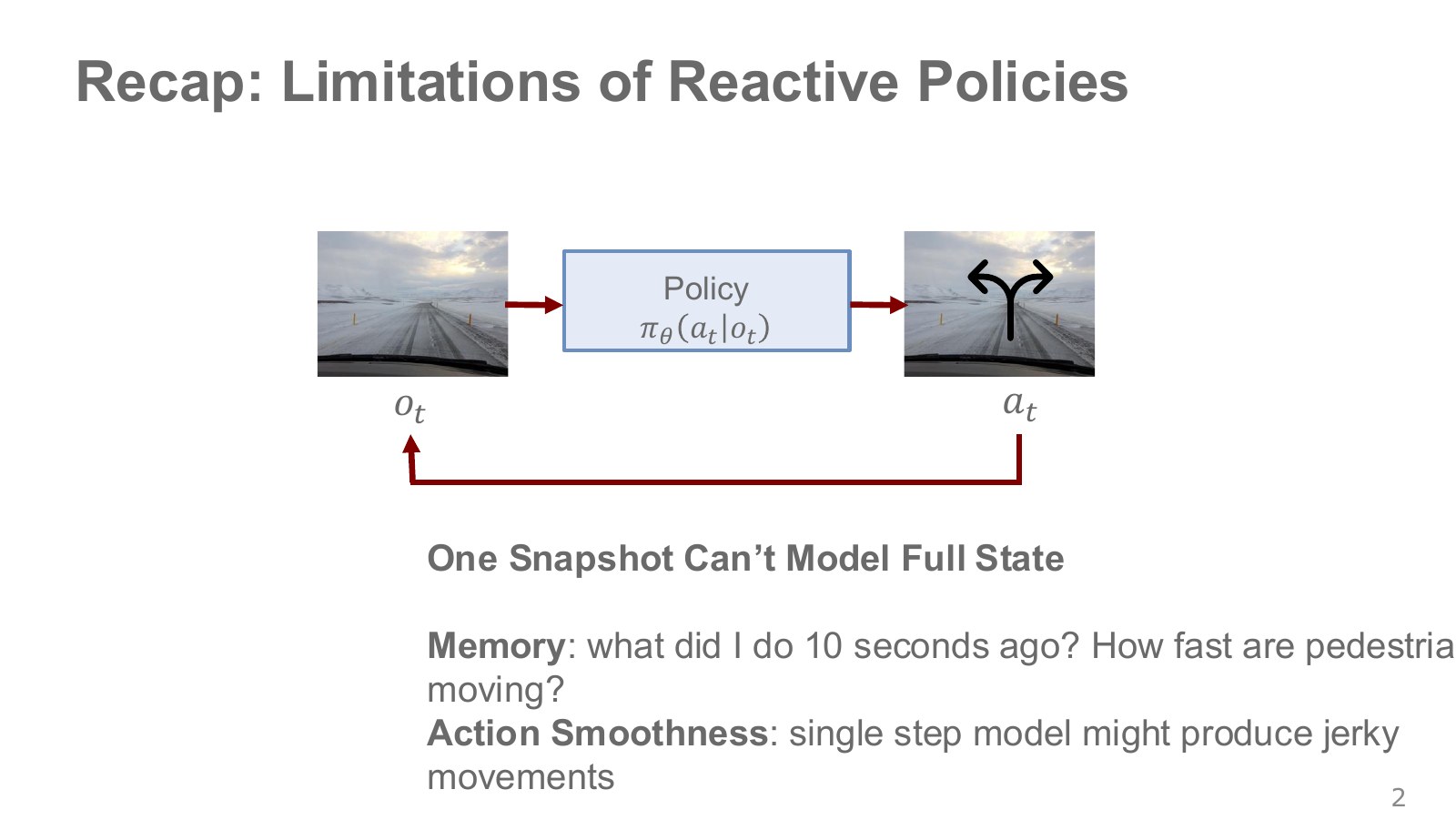

Reactive policies map the current observation $o_t$ to an action $a_t$. Two problems:

Reactive policy: one observation in, one action out

Fix: model the whole sequence of observations and actions.

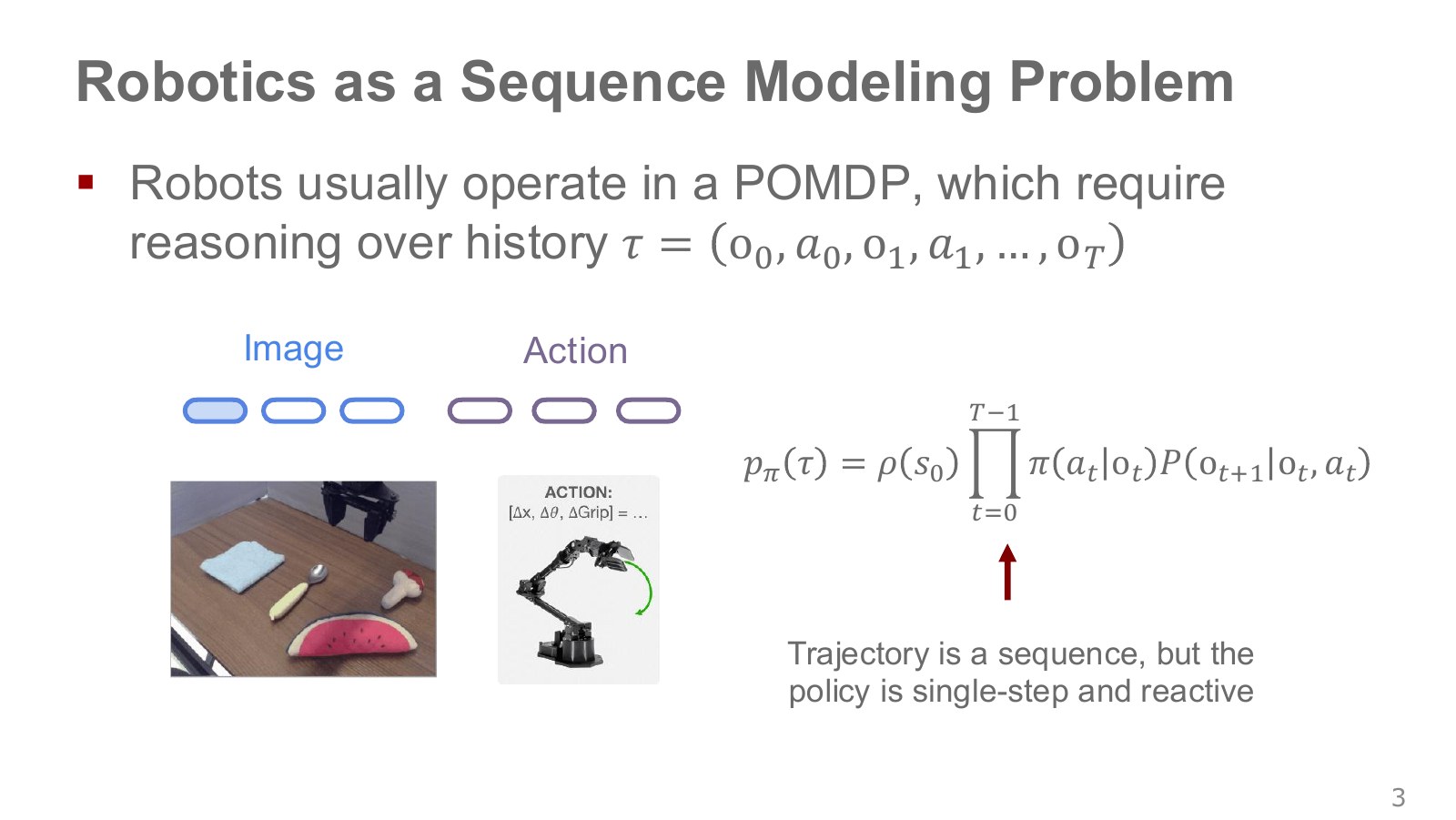

2. The trajectory equation

\[p_\pi(\tau) = \rho(s_0) \prod_{t=0}^{T-1} \pi(a_t \mid o_t)\, P(o_{t+1} \mid o_t, a_t)\]
Piece Meaning
$\rho(s_0)$ How the world starts (e.g. random object positions)
$\pi(a_t \mid o_t)$ Policy: how likely is this action given what the robot sees
$P(o_{t+1} \mid o_t, a_t)$ The world’s reply to the action

Only $\pi$ depends on the policy parameters, so when you differentiate $\log p_\pi(\tau)$ the $\rho$ and $P$ terms drop out. You can train a policy without knowing the physics.

Where it breaks. The simple form is exact only if $o_t$ is a sufficient statistic of the hidden state (truly, physics moves a hidden state and a sensor reads it out). Example: a gripper closes on a cube, with identical images and commands, but the cube is heavy in one run and light in the other. The camera cannot see mass, so no single $P(o_{t+1} \mid o_t, a_t)$ fits both. The fix is to condition on the full history: $\pi(a_t \mid h_t)$. Papers still use the simple form as shorthand, usually with frame stacking or a wrist camera.

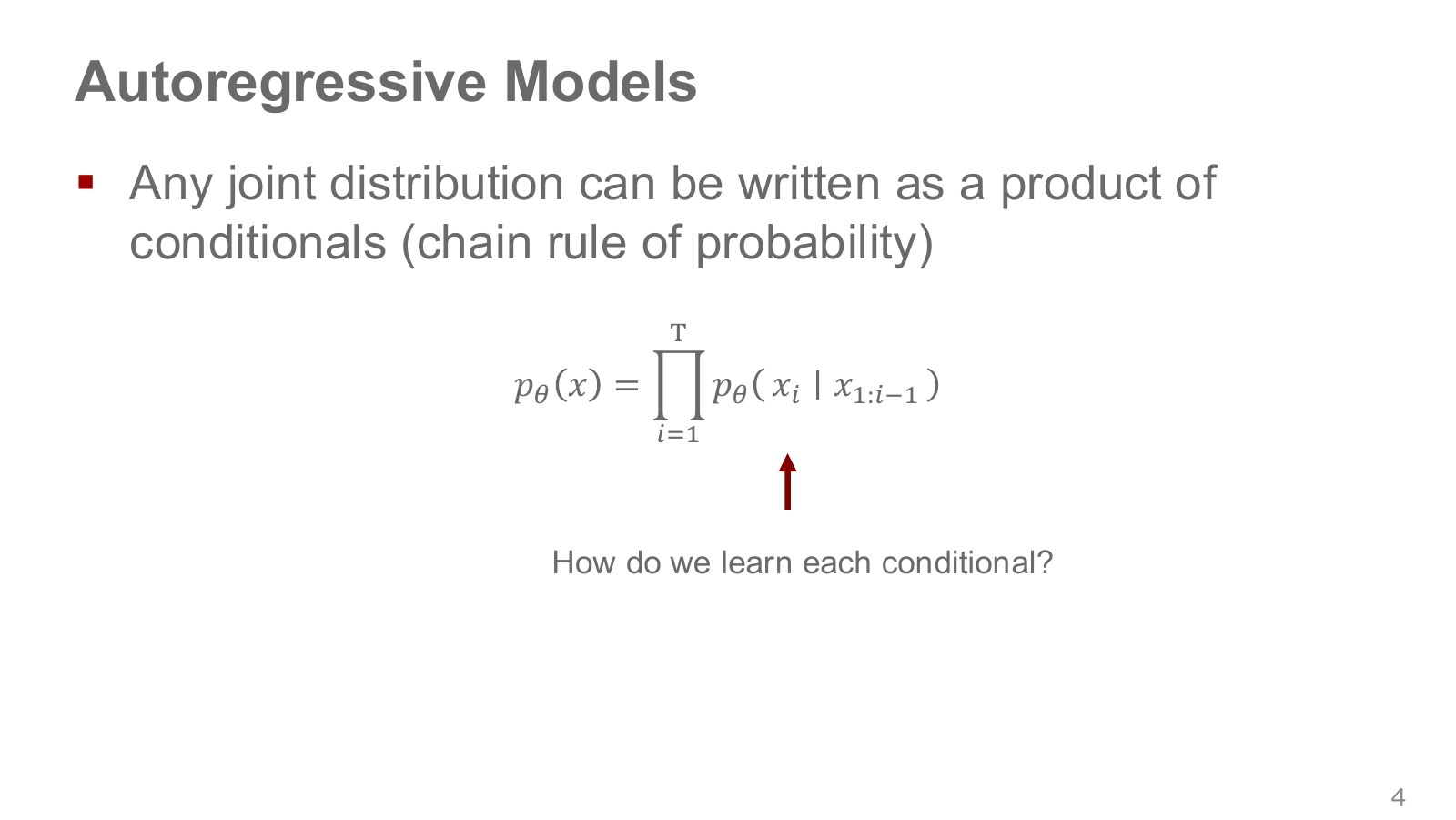

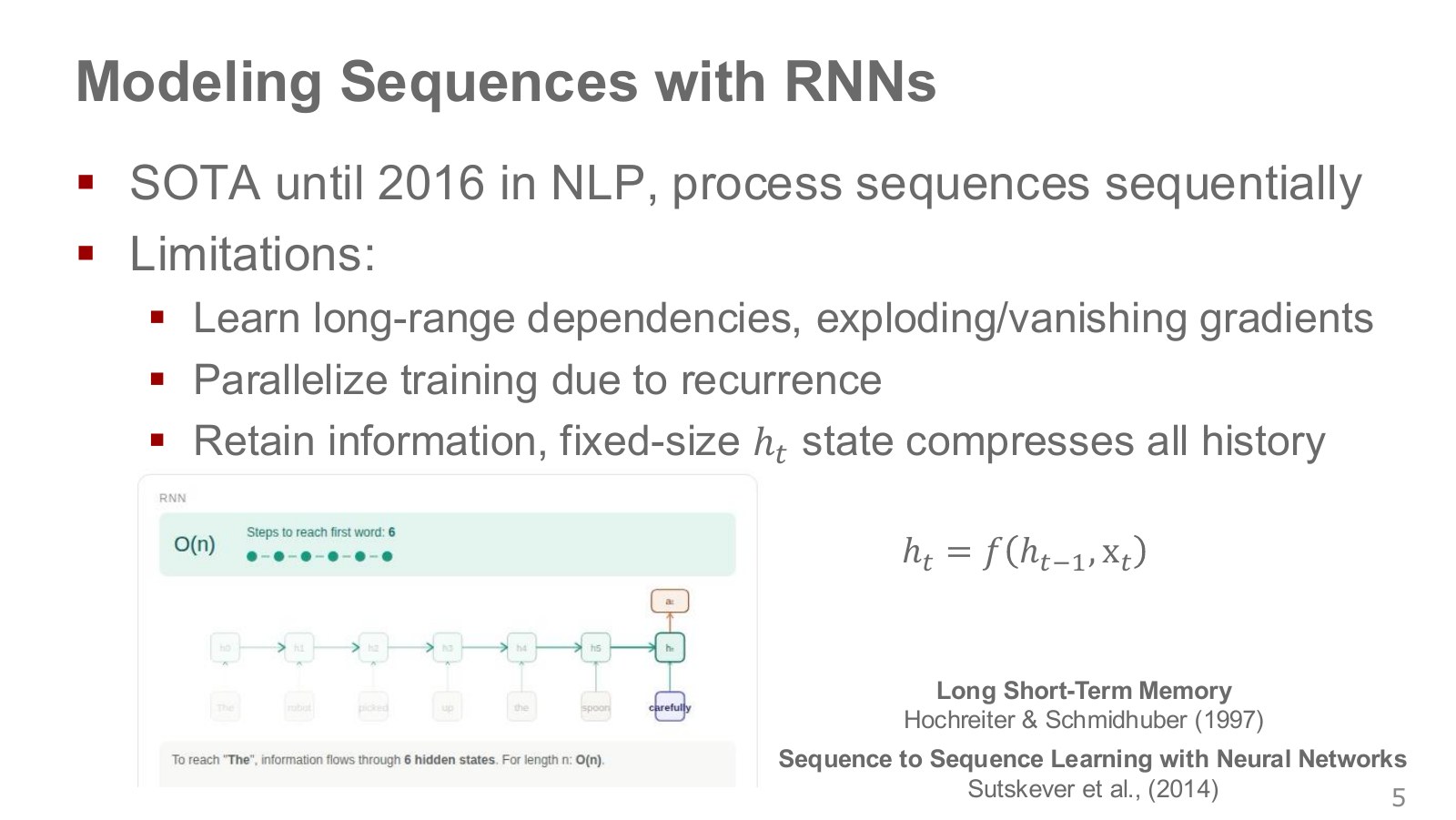

3. Chain rule and RNNs

Any sequence splits into conditionals (this is autoregressive modeling):

\[p(x_1, \dots, x_T) = \prod_{t=1}^{T} p(x_t \mid x_1, \dots, x_{t-1})\]

An RNN models each conditional with a hidden state updated each step, $h_t = f(h_{t-1}, x_t)$. Problems:

  1. Long-range memory: gradients pass back through every step and vanish or explode (LSTMs only slow this).
  2. Slow training: step $t$ needs step $t-1$, so no parallelism.
  3. Bottleneck: all history squeezed into one fixed-size vector.

RNN unrolled over time

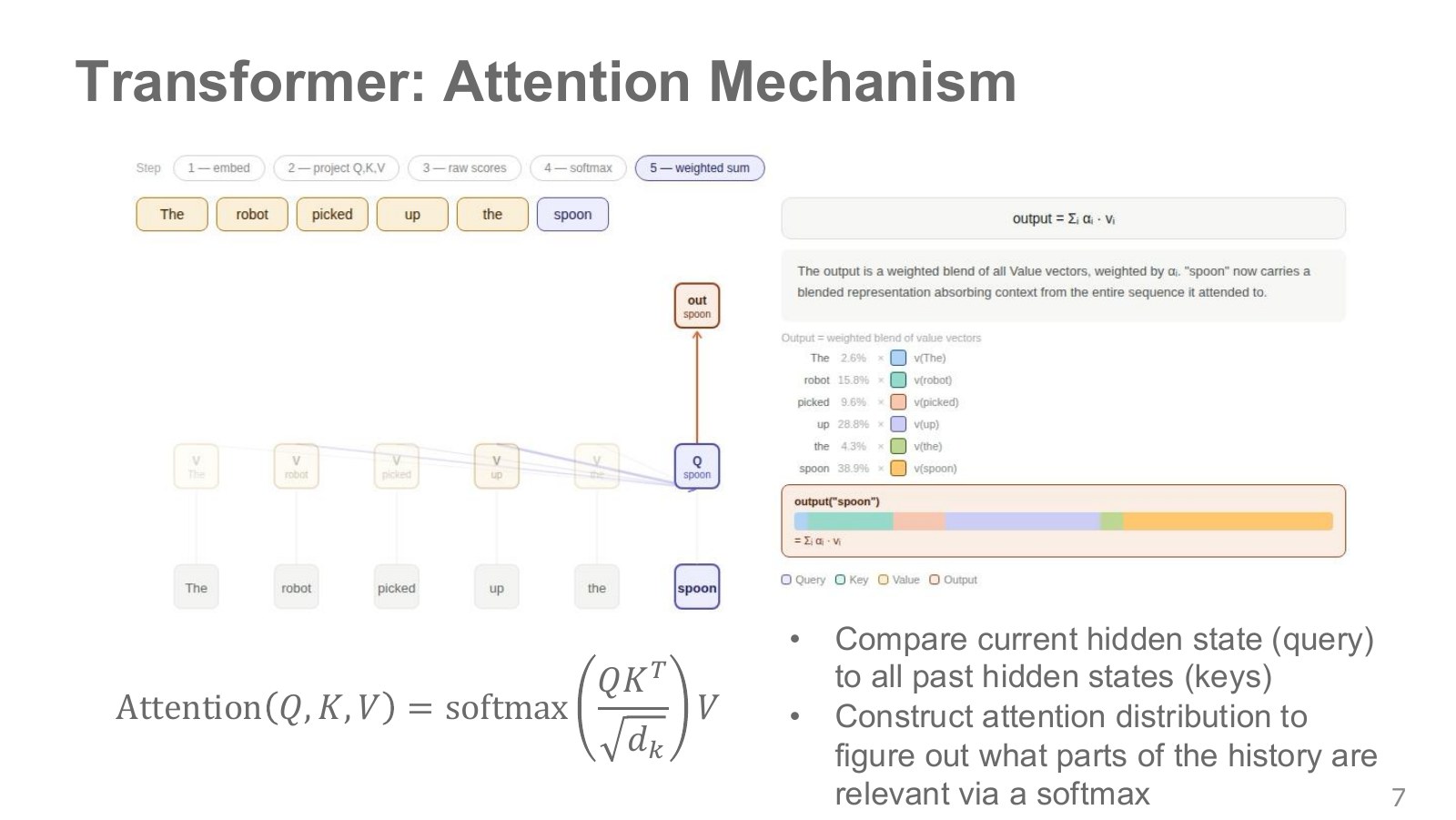

4. Attention

Every token looks at every other token in one hop and decides which matter. This fixes all three RNN problems: direct long-range links, parallel training, no single bottleneck vector (Vaswani et al., 2017).

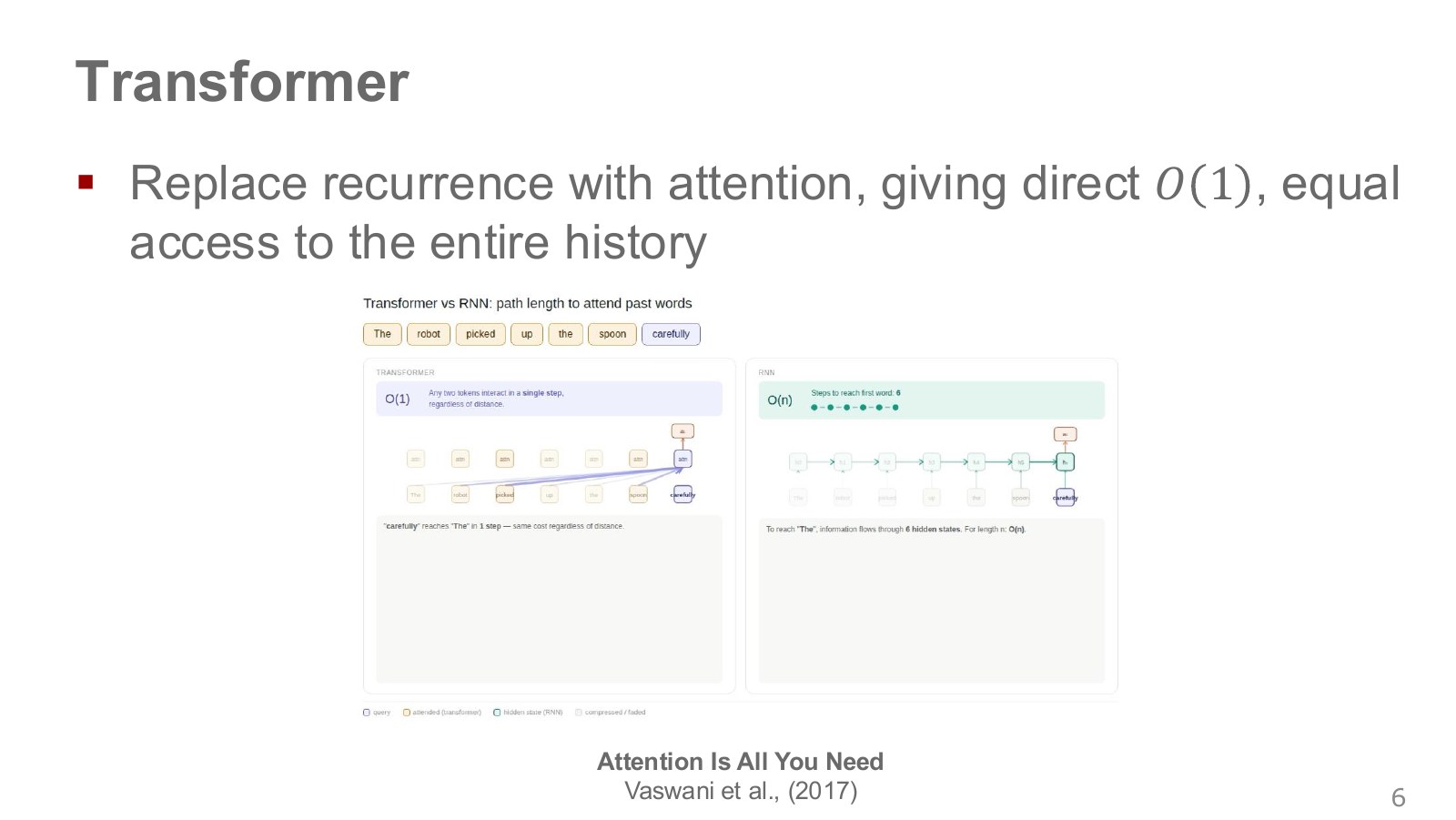

RNN chain vs attention direct access

See Neural Machine Translation by Jointly Learning to Align and Translate (Bahdanau et al., 2014) for attention in sequence models and Attention Is All You Need (Vaswani et al., 2017) for attention without recurrence.

Each token makes three vectors: a query $q$ (what I am looking for), a key $k$ (what I advertise), a value $v$ (what I hand over if chosen). Stack the $n$ token embeddings into $X \in \mathbb{R}^{n \times d_{\text{model}}}$ and project:

\[Q = XW_Q,\qquad K = XW_K,\qquad V = XW_V\] \[\boxed{\text{Attention}(Q,K,V) = \text{softmax}\!\left(\frac{QK^\top}{\sqrt{d_k}} + M\right)V}\]
Piece Shape What it does
$W_Q, W_K, W_V$ $d_{\text{model}} \times d_k$ Learned projections that create $q$, $k$, $v$
$QK^\top$ $n \times n$ Entry $(i,j)$ = dot product of query $i$ with key $j$: how relevant token $j$ is to token $i$
$\sqrt{d_k}$ scalar Dot products of $d_k$-dim vectors have variance $\propto d_k$. Without scaling, large scores saturate softmax and gradients vanish
$M$ $n \times n$ Mask: $0$ where allowed, $-\infty$ for future tokens in causal attention, so their weight becomes 0
softmax row-wise Turns each row into positive weights summing to 1
$\cdot V$ $n \times d_v$ Each output is the weighted average of all value vectors

It is a soft dictionary: a normal dictionary returns one entry, attention returns a blend of all entries weighted by key-query match. Everything is differentiable, so the model learns both what to store in $q, k, v$ and where to look. Multi-head: run $h$ attentions in parallel with their own $W_Q, W_K, W_V$ (and $d_k = d_{\text{model}}/h$), concatenate, apply $W_O$.

Worked example (scores already scaled). Token “it” scores $[2, 1, 0]$ against [“robot”, “picked”, “spoon”]: $e^2, e^1, e^0 = 7.39, 2.72, 1$ (total $11.11$) gives weights $[0.67, 0.24, 0.09]$. Output $= 0.67\,v_{\text{robot}} + 0.24\,v_{\text{picked}} + 0.09\,v_{\text{spoon}}$.

Attention worked example

See Attention Is All You Need (Vaswani et al., 2017), scaled dot-product attention.

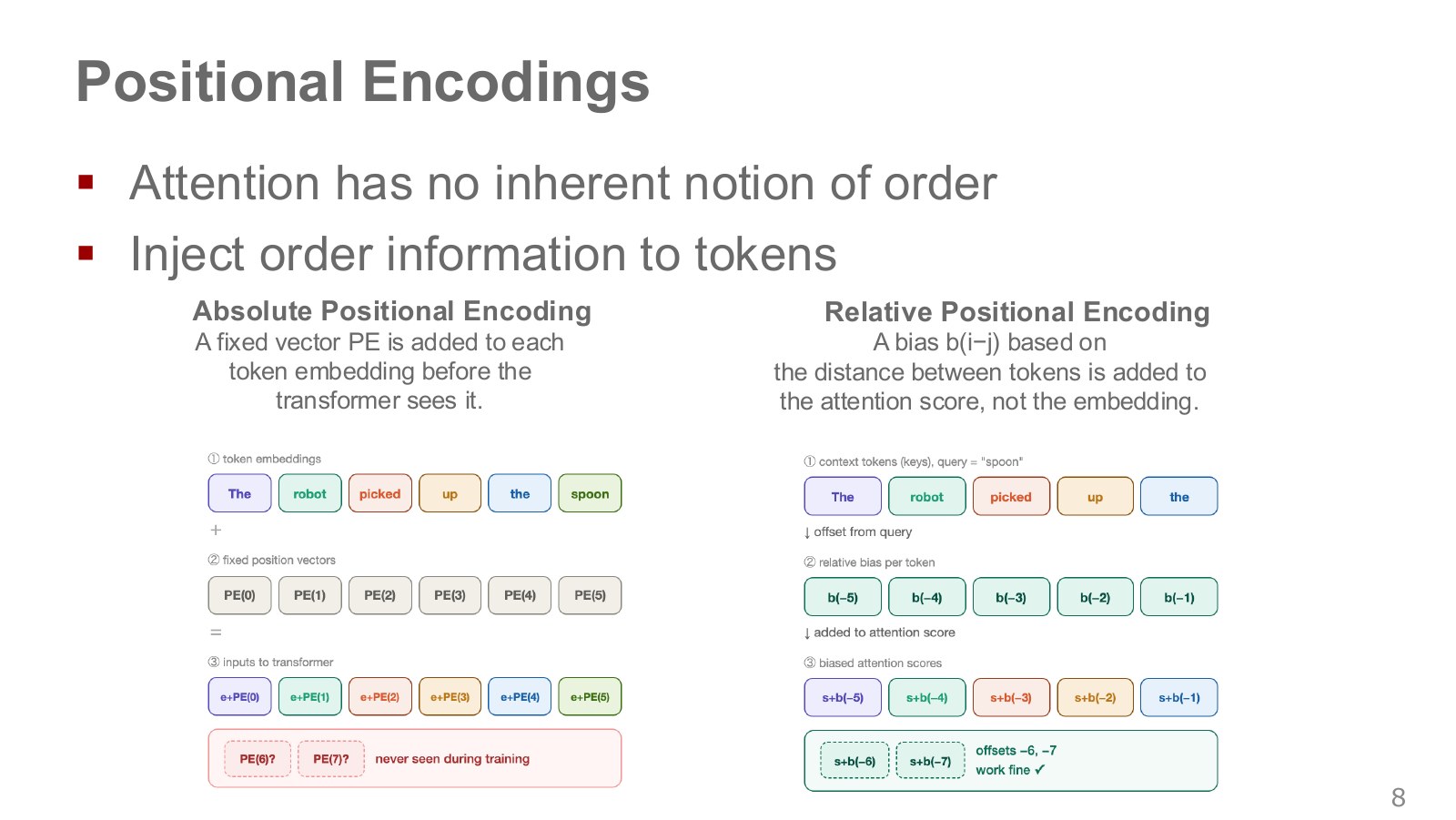

Positional encodings. The dot product ignores order, so position must be injected.

Type Idea Note
Absolute Add a fixed vector per position Fails beyond training length
Relative Bias scores by token distance Generalizes to longer sequences
RoPE Rotate $q, k$ by a position-proportional angle, so the dot product depends only on distance Used in most modern LLMs

Absolute (sinusoidal) encodings are from Attention Is All You Need (Vaswani et al., 2017). See Self-Attention with Relative Position Representations (Shaw et al., 2018) for relative and RoFormer: Enhanced Transformer with Rotary Position Embedding (Su et al., 2021) for RoPE.

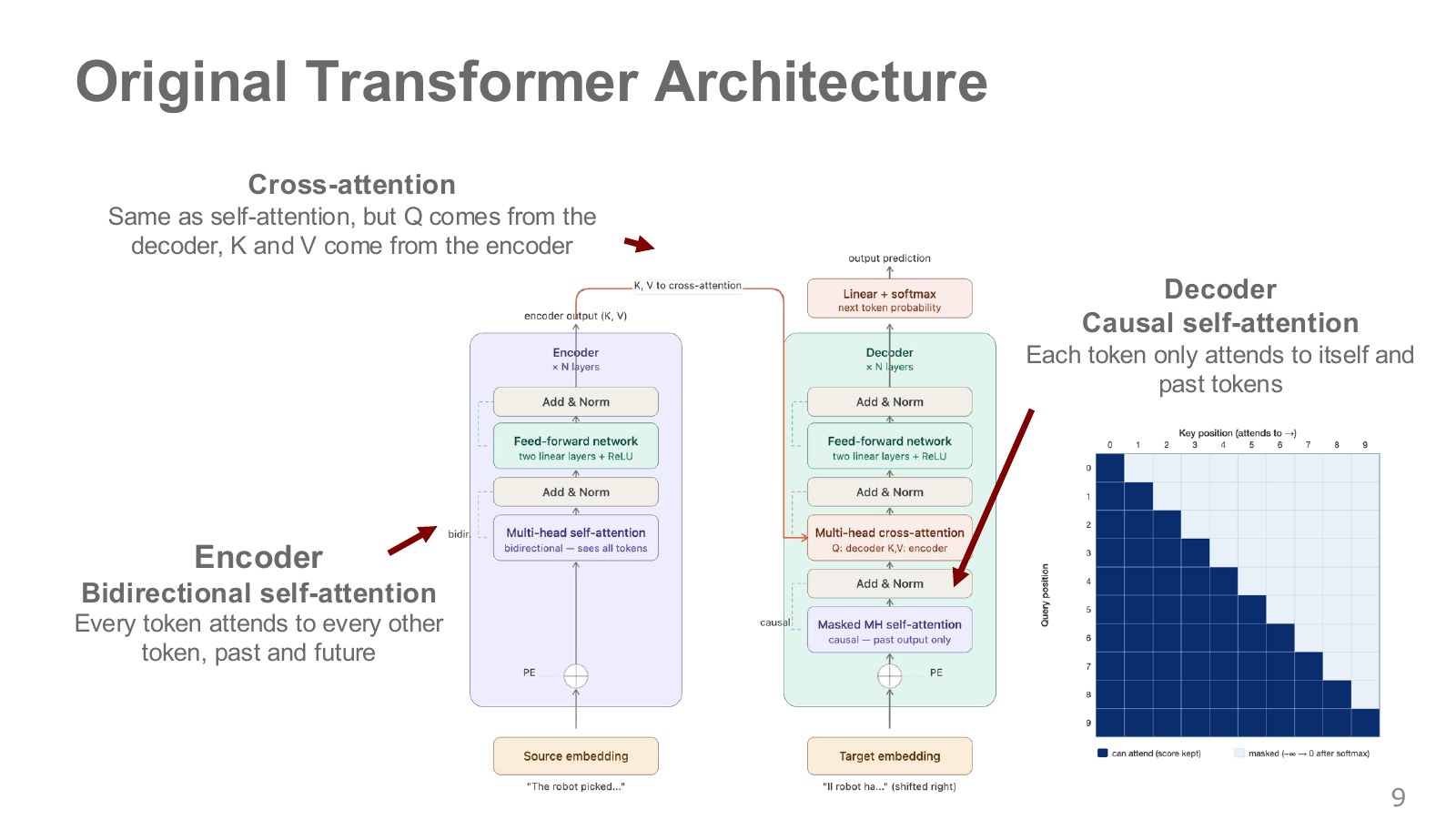

5. The original transformer

Transformer encoder-decoder architecture

See Attention Is All You Need (Vaswani et al., 2017).

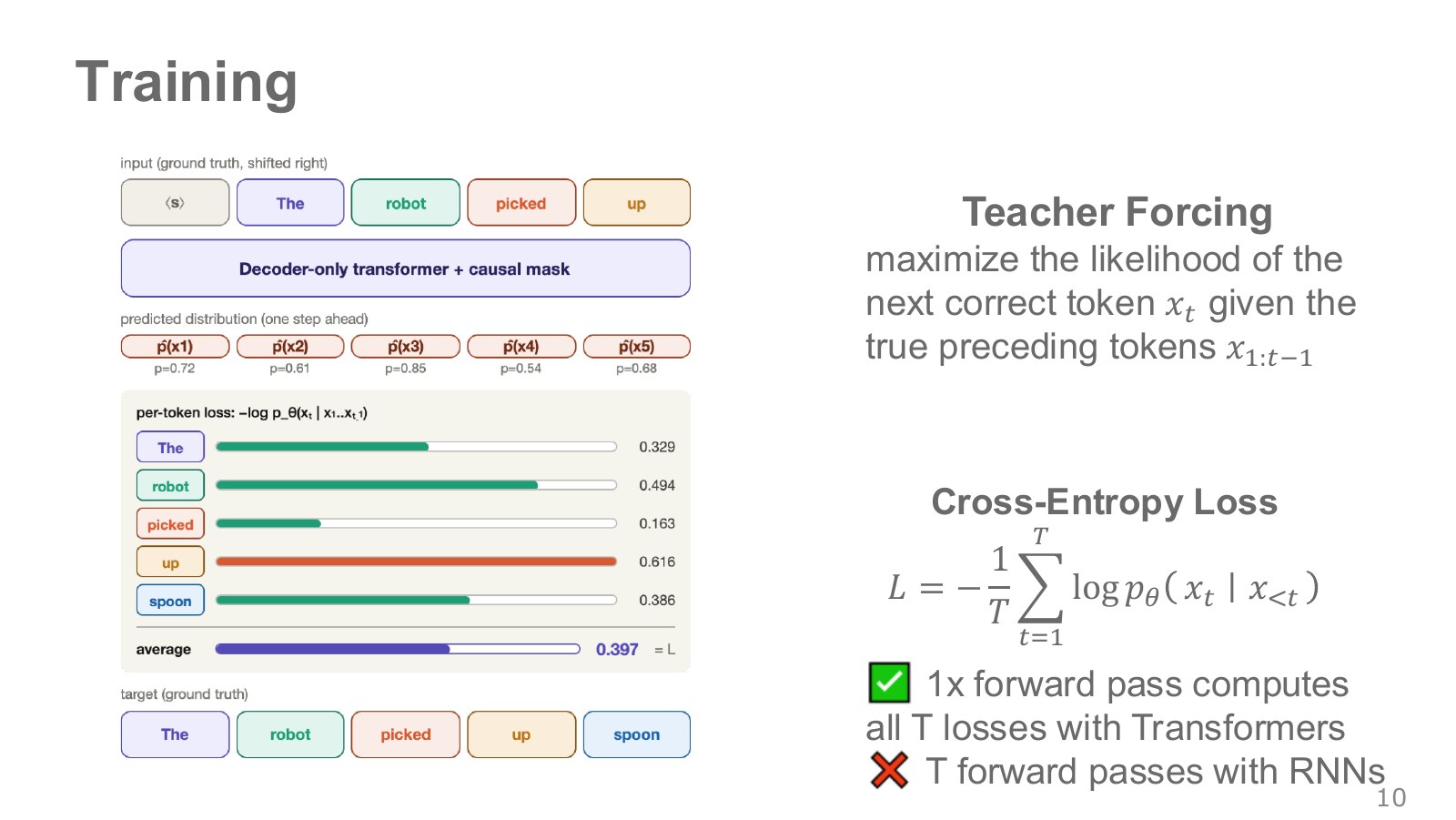

Teacher forcing. In training, feed the true previous tokens and predict the next true token (cross-entropy). With the causal mask, one forward pass gives the loss at every position at once. An RNN needs one step per token.

6. The KV cache

During generation each new token attends to all earlier ones. Earlier keys and values never change, so compute them once and store them. Queries are used only at their own step, so they are not cached.

KV cache growing during generation

\[\text{cache size} = 2 \times n_{\text{layers}} \times n_{\text{kv heads}} \times d_{\text{head}} \times L \times B \times \text{bytes}\]

($L$ = sequence length, $B$ = batch size, 2 = key + value.) Llama-3-8B, 16-bit (32 layers, 8 KV heads, $d_{\text{head}}=128$): 128 KB per token, about 1 GB at 8k context, about 16 GB at 128k.

Two different memory problems:

  Attention matrix KV cache
Hurts during Training, prefill Decode
Grows as $L^2$ $L$
At $L$ = 8k ~4 GB per layer per sequence ~1 GB whole model
Needed later? No, temporary by-product Yes

FlashAttention (Dao et al., 2022) computes attention in small tiles in fast on-chip memory and never stores the full $n \times n$ matrix (memory $O(n)$, same answer). It fixes the matrix, not the cache, because the cache holds information later tokens need.

7. KV cache vs RNN hidden state

The real difference is when the model decides what to keep.

  RNN hidden state KV cache
Size Fixed, $O(d)$ Grows, $O(L \cdot d)$
Past tokens Blended into one summary Stored separately, never overwritten
What to keep is decided At write time, blind to future questions At read time, by the current query
Access to old tokens Through the bottleneck Direct, one hop
Training Sequential in $L$ Parallel over $L$
Cost per generated token $O(d^2)$, constant $O(L \cdot d)$, grows

8. Tokens and LLMs

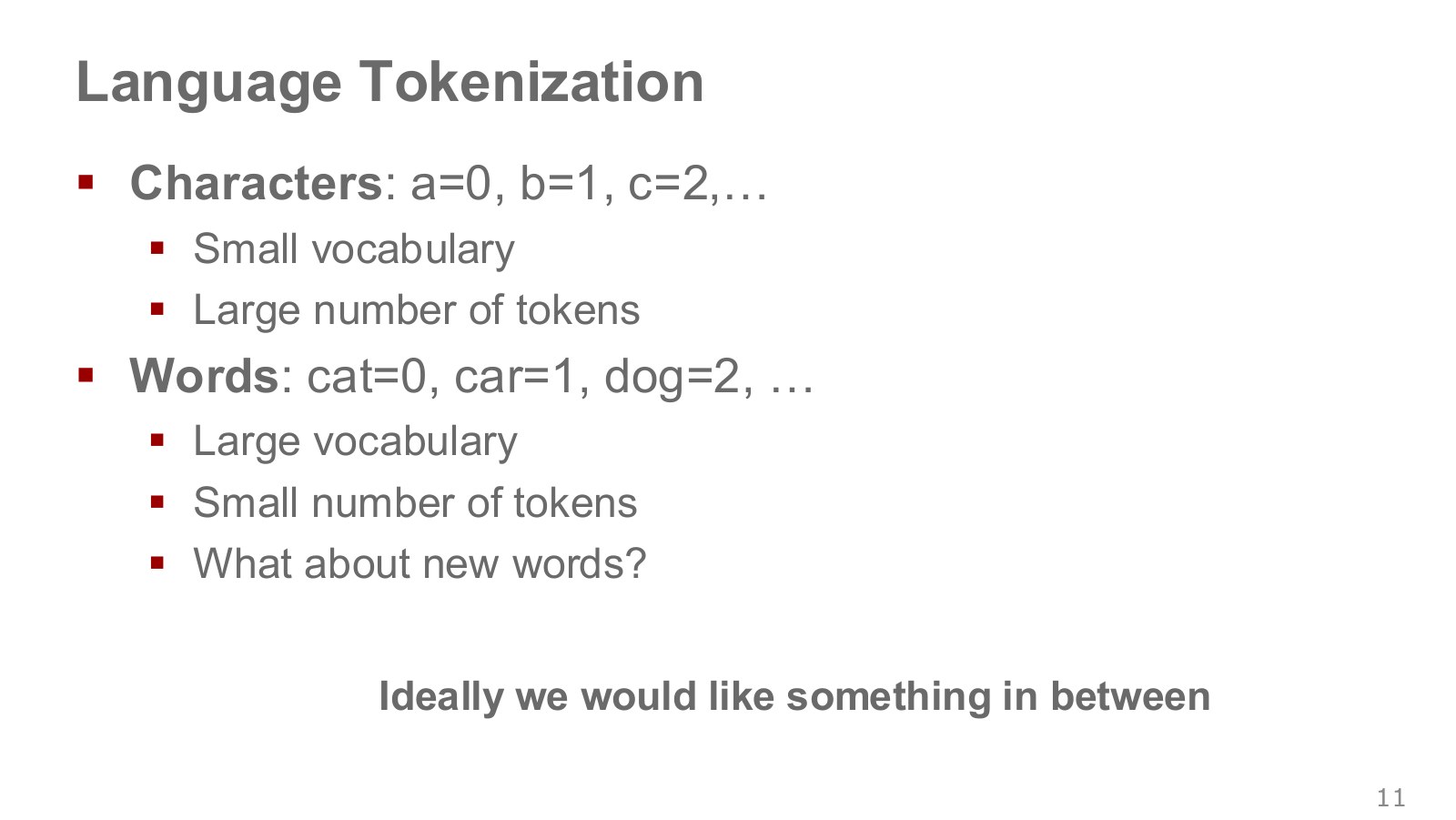

Subword tokens balance vocabulary size against sequence length: characters give very long sequences, whole words cannot represent unseen words, and attention cost is quadratic in length.

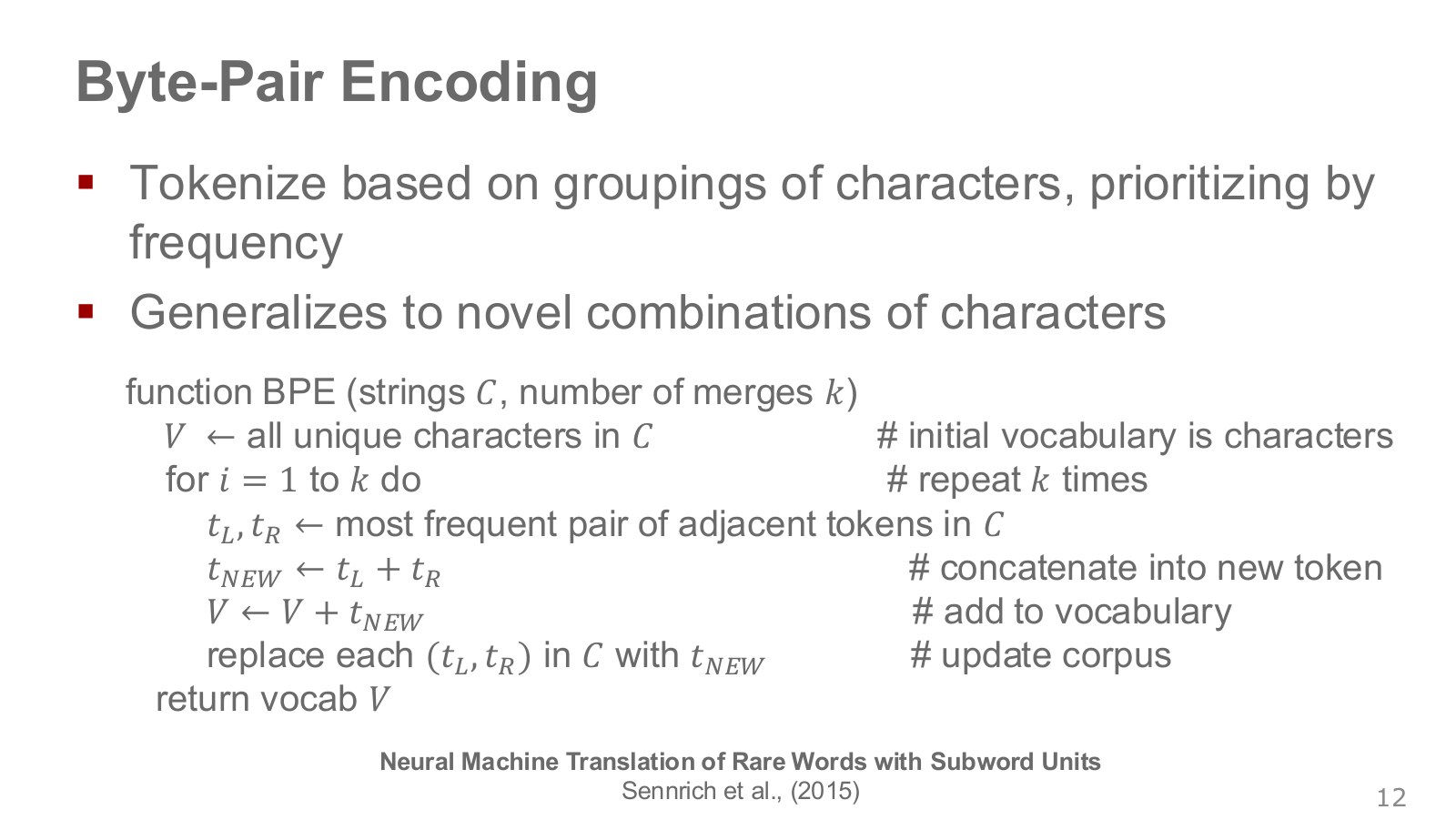

Byte Pair Encoding (BPE) (Sennrich et al., 2016) builds the vocabulary from data:

  1. Start with single characters (or raw bytes) as the vocabulary.
  2. Count adjacent pairs and merge the most frequent pair into a new token.
  3. Repeat until the vocabulary reaches the target size (e.g. ~100k).

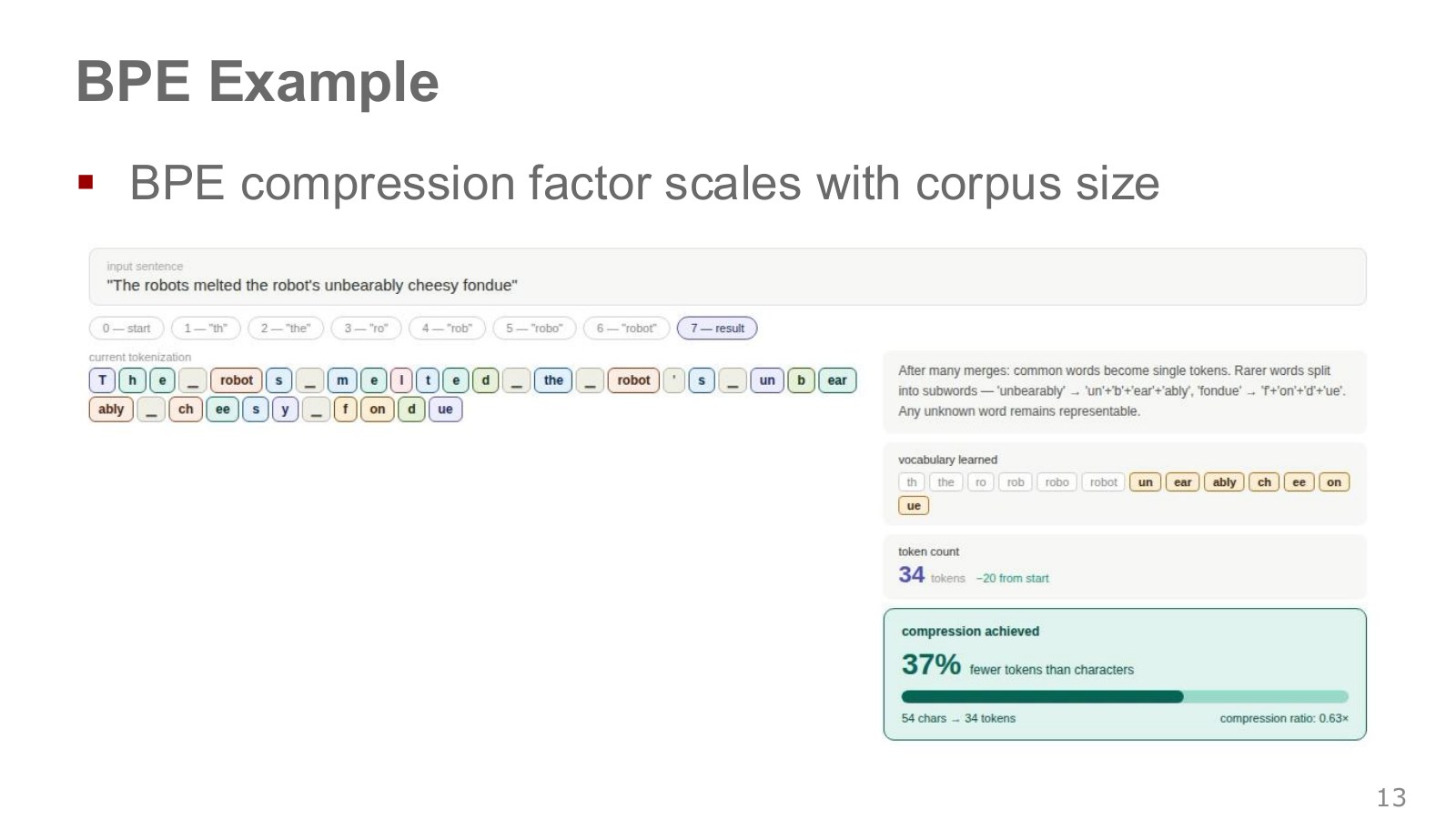

Common pieces merge early (t + h → th, th + e → the); a rare or brand-new word still splits into known smaller pieces. Byte-level BPE (GPT-2) starts from raw bytes, so any input (emojis included) can be encoded. At internet scale it gives about 3-4x compression over characters. BPE only works on discrete symbols, which is why continuous actions must be made discrete before it can be used (section 11).

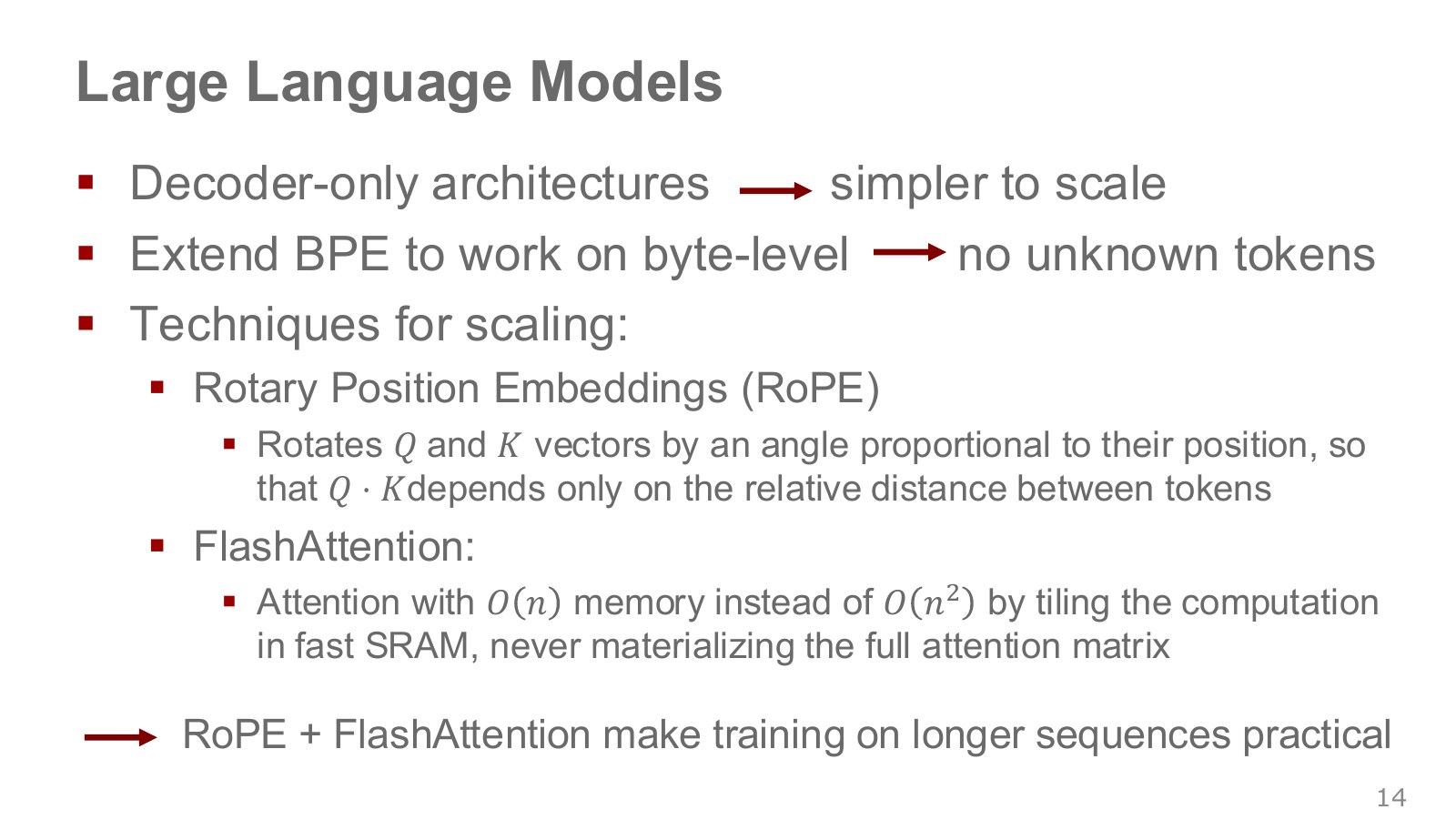

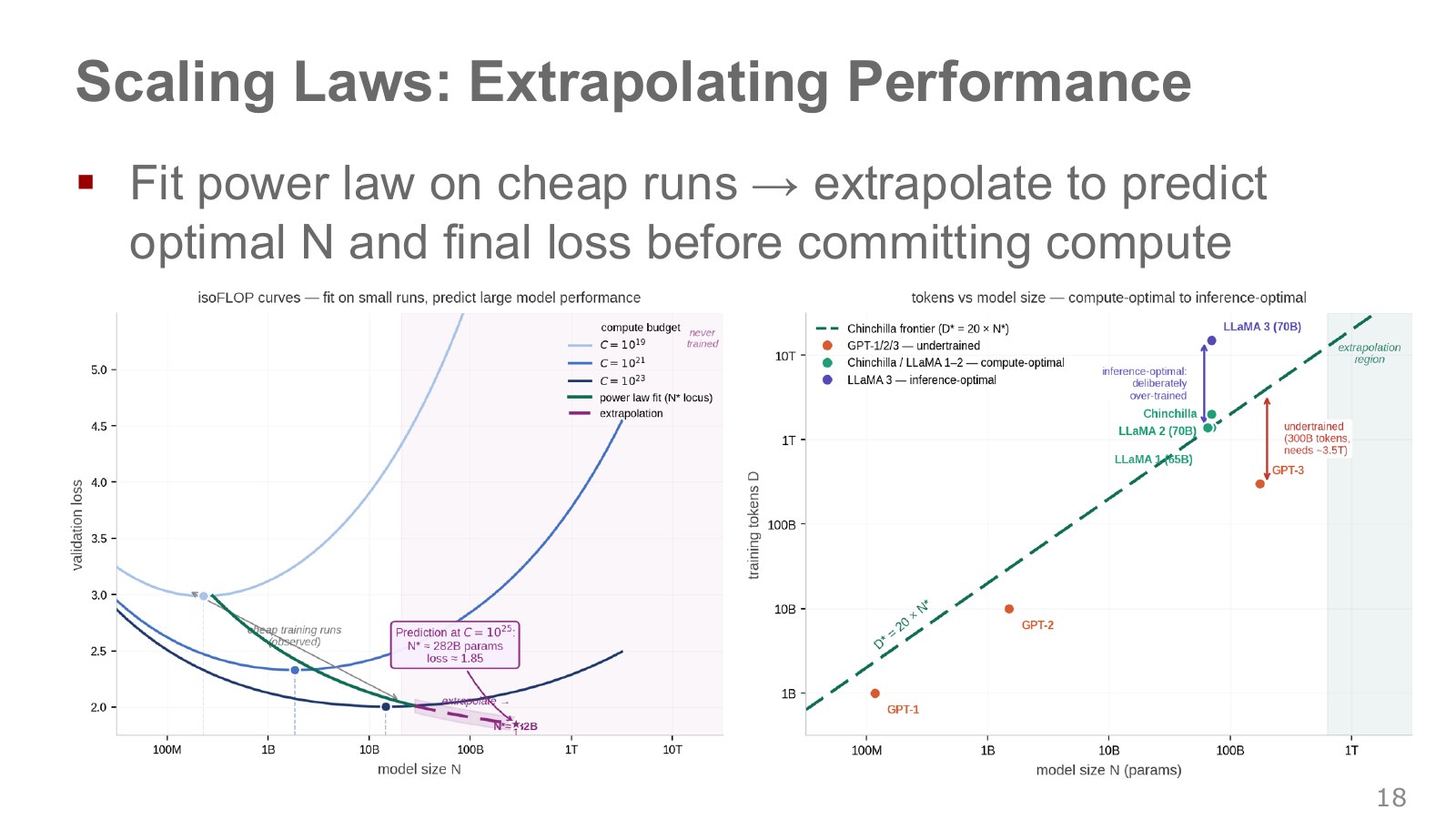

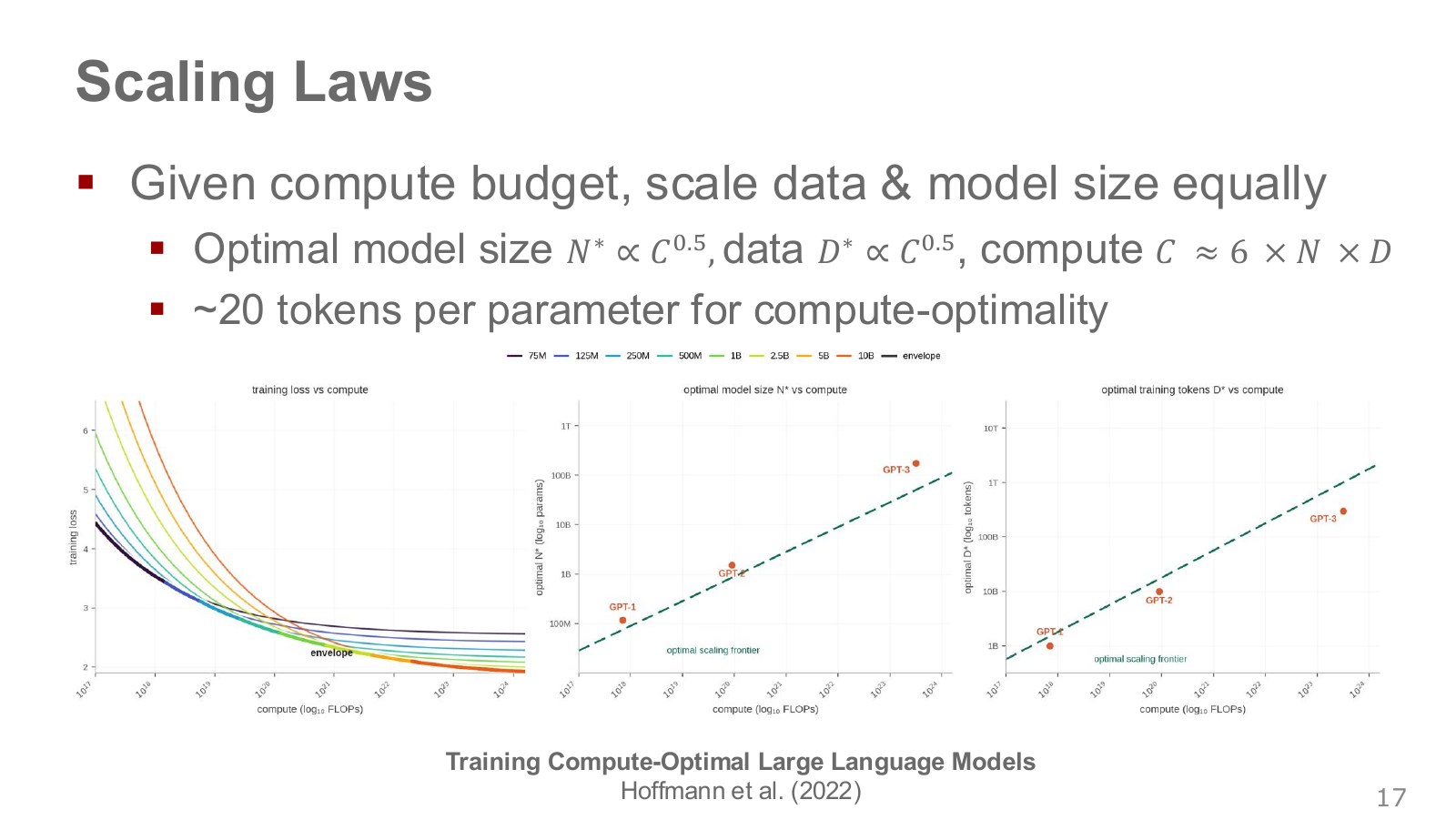

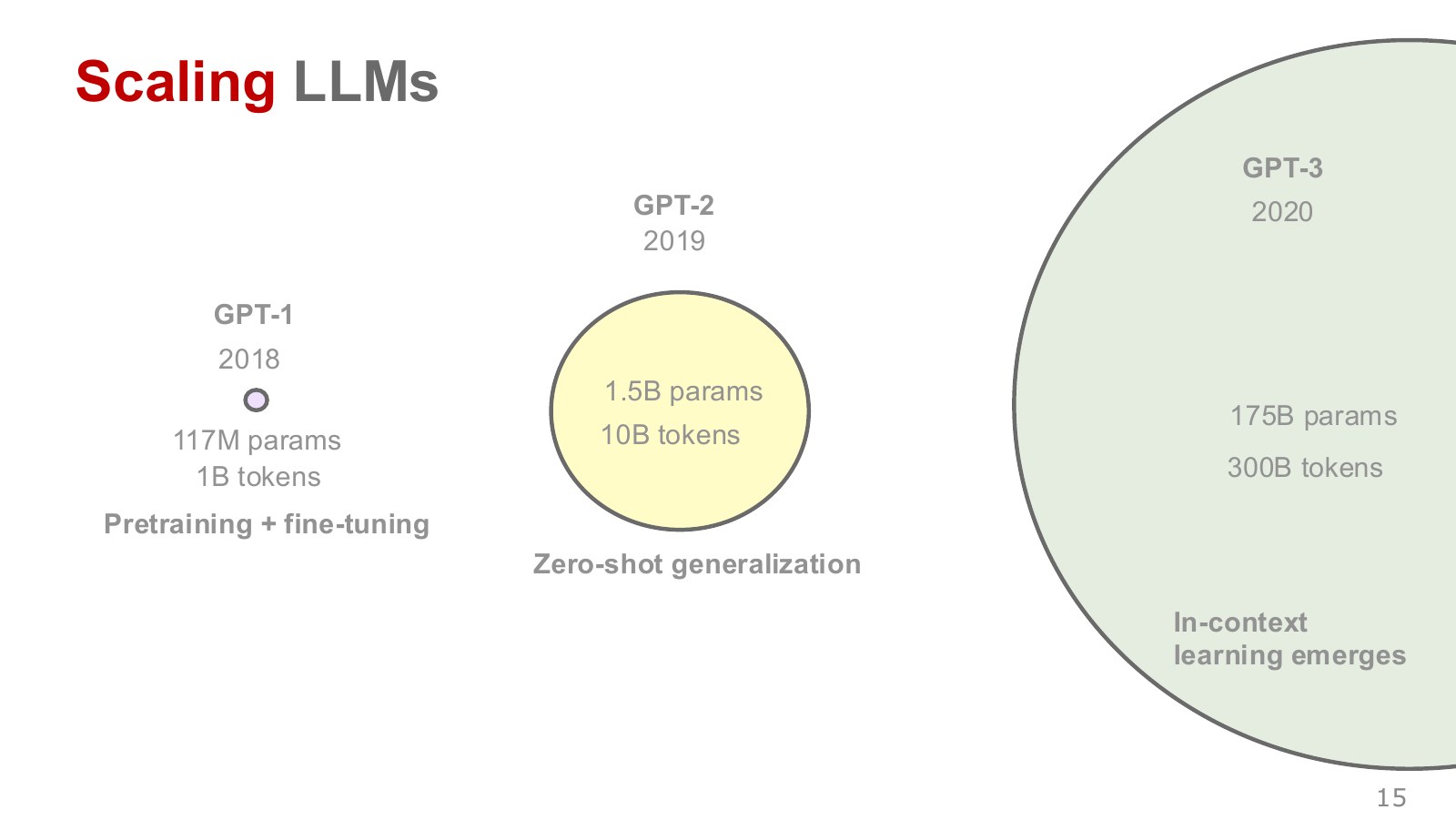

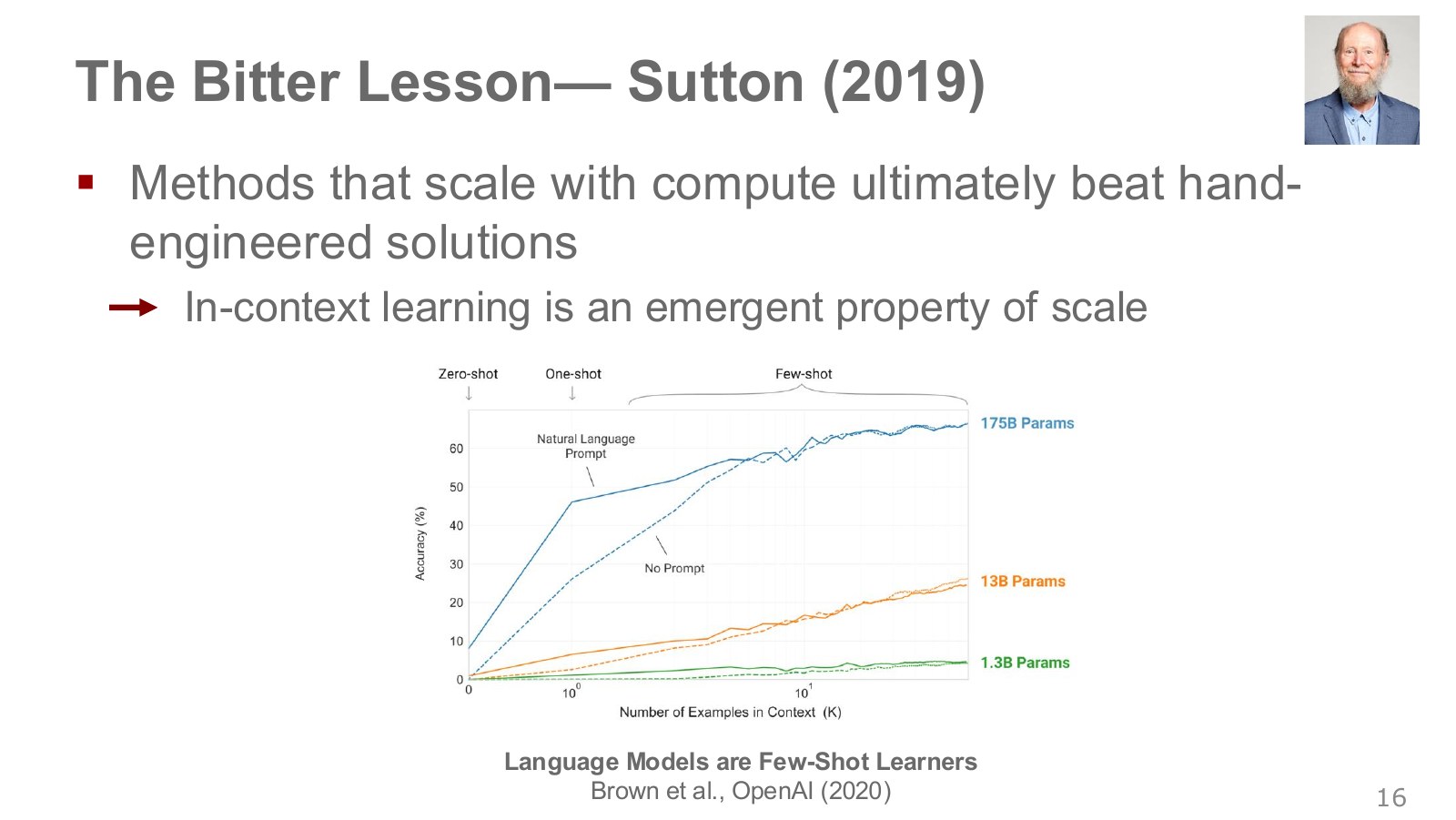

LLMs are decoder-only transformers trained on plain next-token prediction (GPT). Scale brought new abilities: zero-shot behavior (GPT-2) and in-context learning (GPT-3) 175B parameters: show a few examples in the prompt and it picks up the pattern with no weight updates).

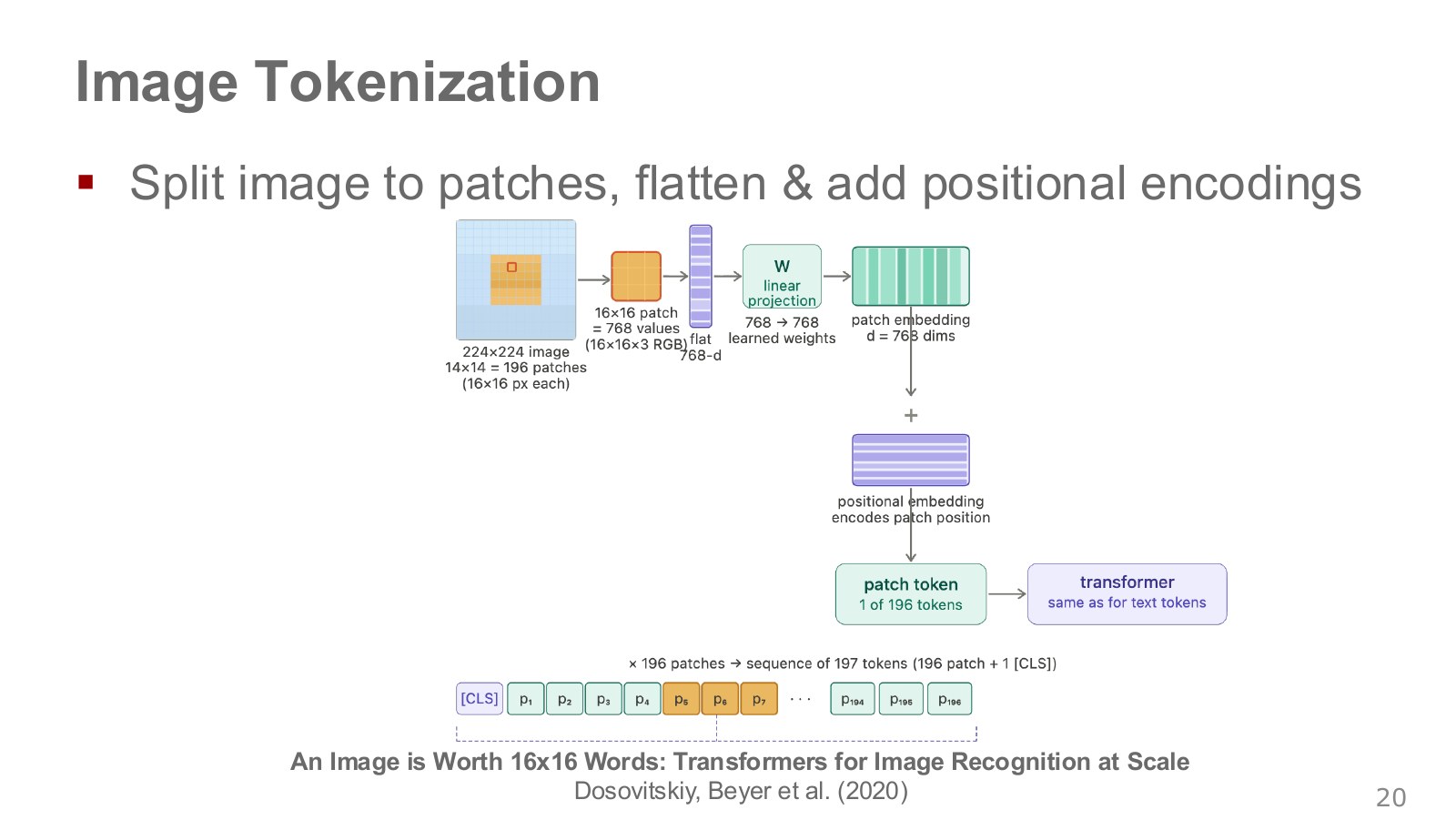

9. Vision transformers (ViT)

To feed images to a transformer, change only the tokenizer: cut the image into patches and treat each patch as a token. This is the Vision Transformer (ViT) of Dosovitskiy et al., 2020 (“An Image is Worth 16x16 Words”).

Vision Transformer pipeline

See An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale (Dosovitskiy et al., 2020). ViT-Base/16: 224×224 input, 16×16 patches, 768-d tokens.

  1. Patchify. Split the image into $P \times P$ patches (224×224 with $P=16$, the ViT-Base/16 setting of the original paper, gives 14×14 = 196 patches).
  2. Embed. Flatten each patch ($16 \cdot 16 \cdot 3 = 768$ numbers) and apply one shared linear layer (768 → 768).
  3. Add position. Prepend a learnable [CLS] token (196 patches + [CLS] = 197 tokens) and add a learned position embedding to every token.
  4. Encode. Standard transformer encoder with bidirectional attention (no mask).
  5. Use the output. [CLS] feeds a classifier, or the patch tokens go on as image tokens for a VLM or VLA.

Cost grows with (number of patches)$^2$, so smaller patches mean more tokens and much more attention cost.

10. Vision + language (VLMs)

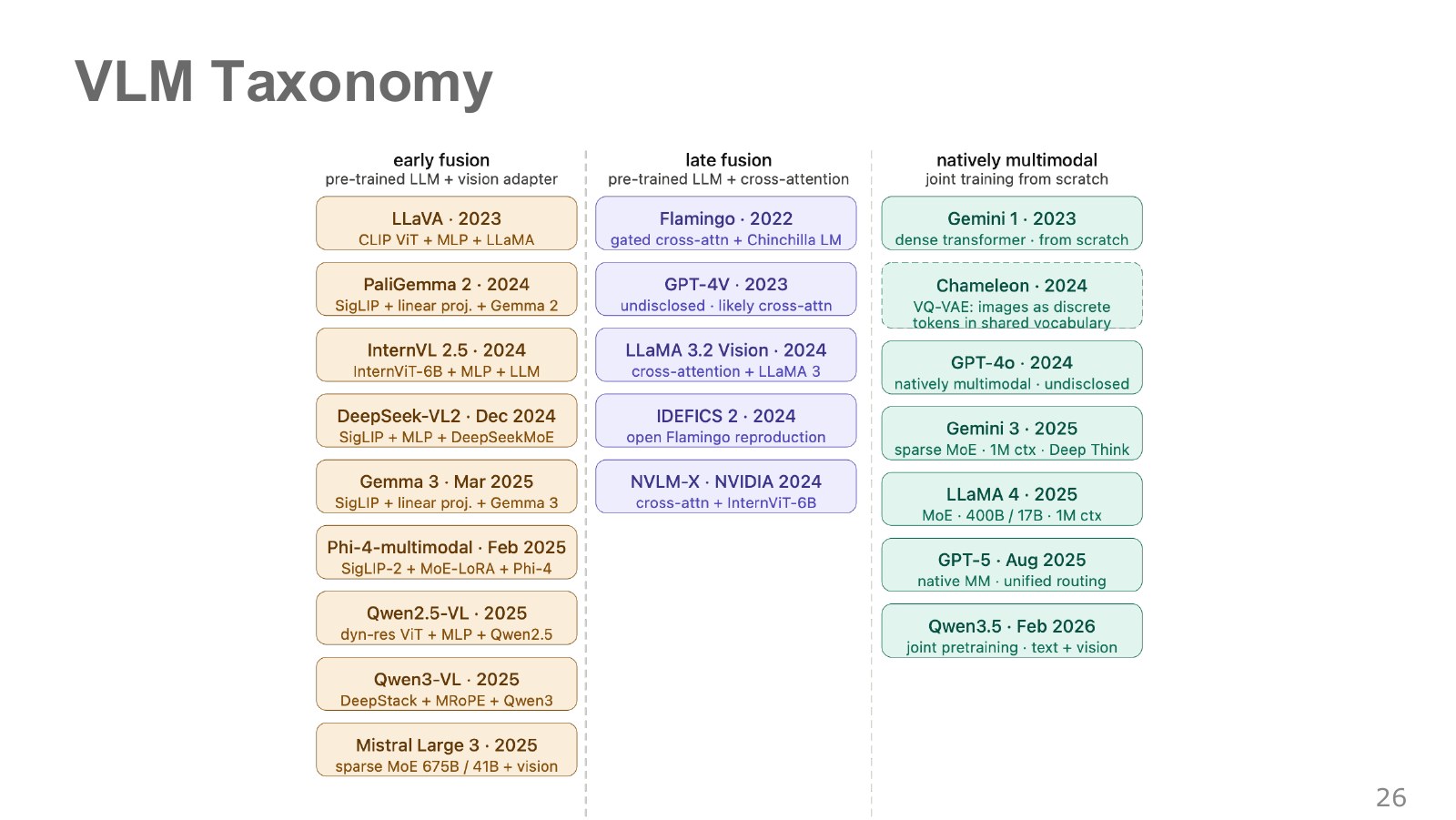

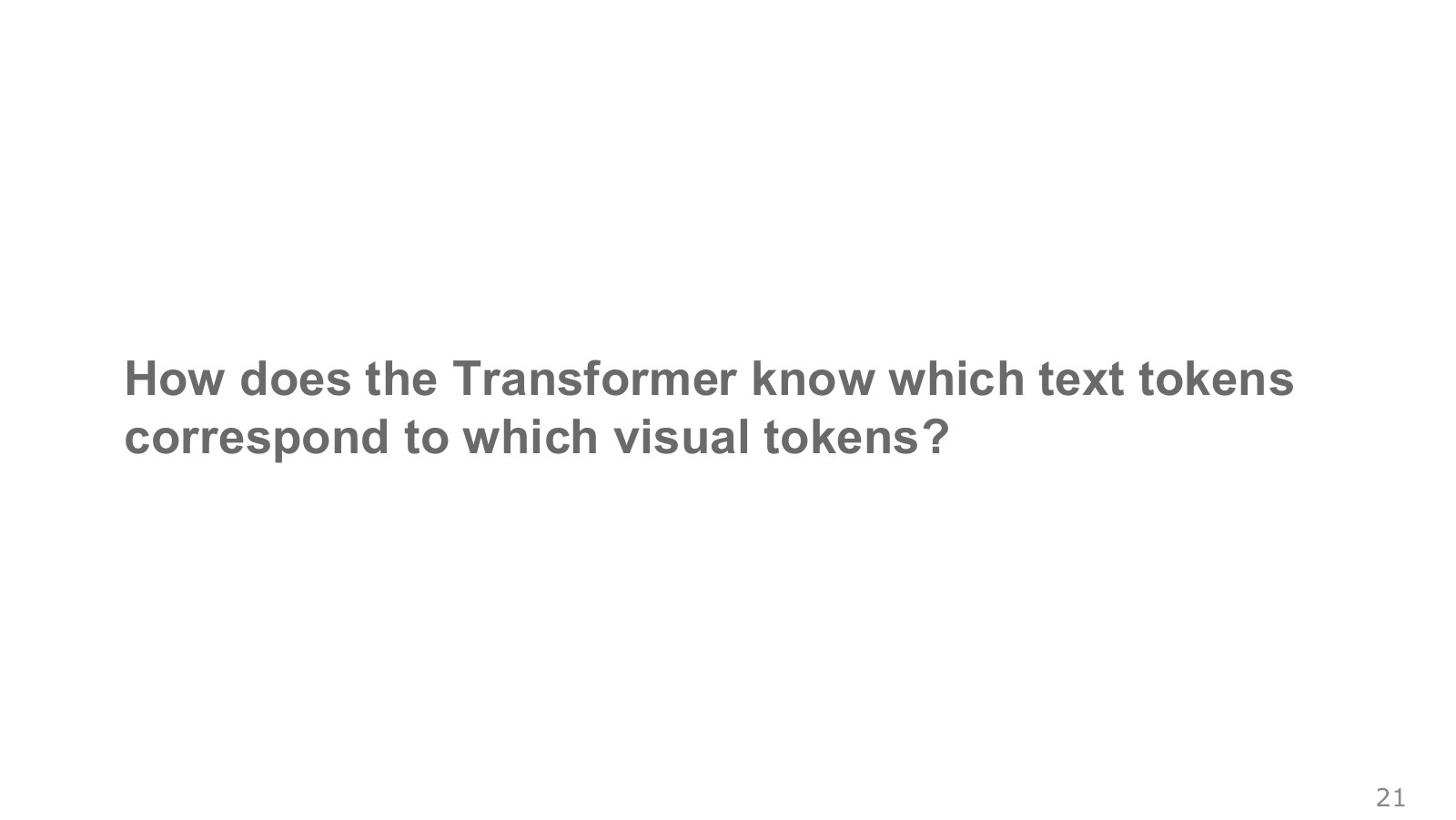

Simply concatenating image and text tokens does not tell the model which words go with which region. Four ways to connect them, from least to most integrated: CLIP (no LLM), early fusion (image tokens enter the LLM input), late fusion (vision enters inside the LLM via cross-attention), native (everything trained together).

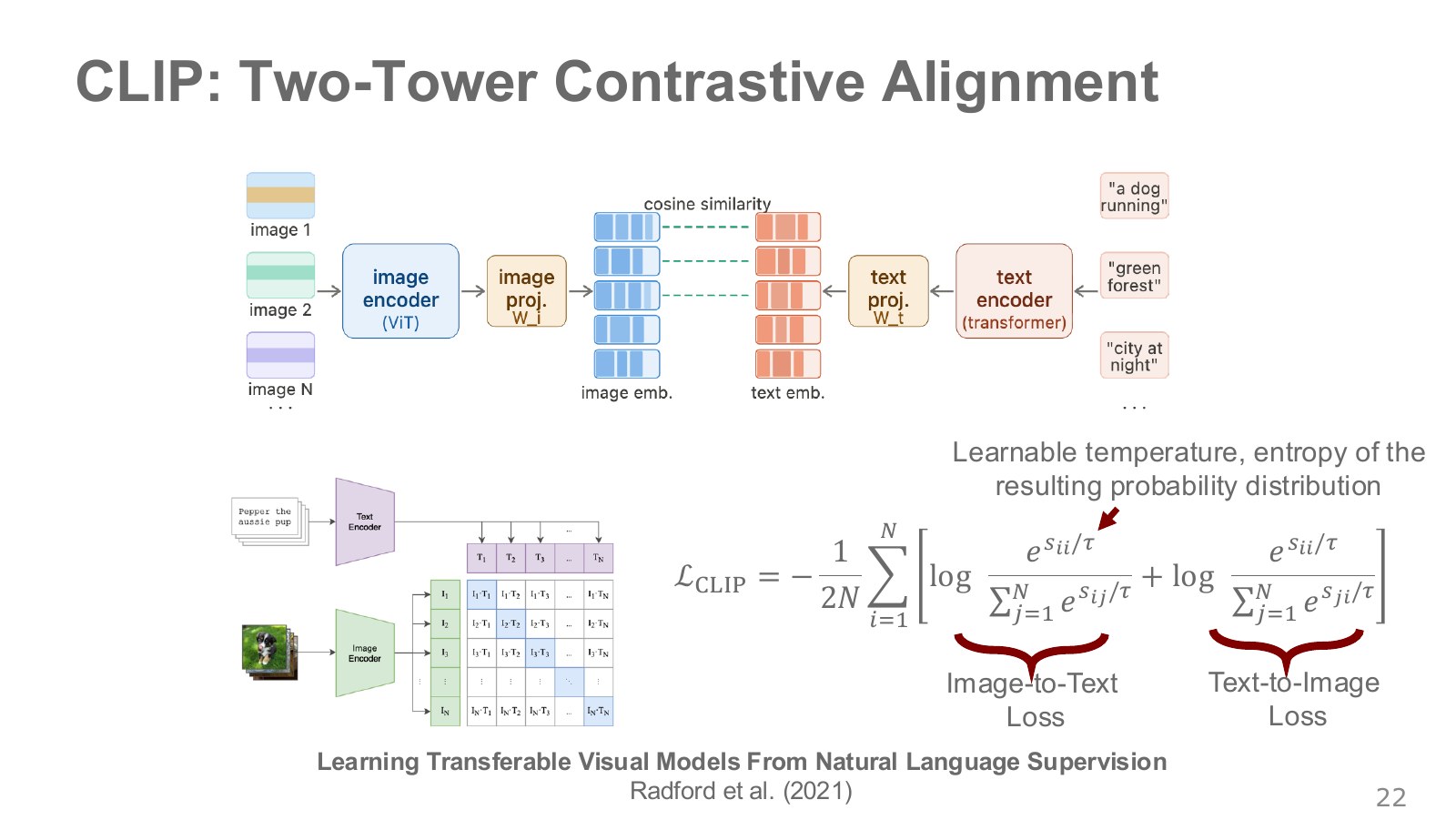

CLIP: two-tower contrastive alignment (Radford et al., 2021)

CLIP two-tower contrastive alignment

See Learning Transferable Visual Models From Natural Language Supervision (Radford et al., 2021).

An image encoder (a ViT) and a text encoder (a transformer), each followed by a projection ($W_i$, $W_t$) into one shared space. Train on image-text pairs: a batch of $N$ pairs gives an $N \times N$ matrix of cosine similarities $s_{ij}$, and the diagonal holds the true pairs.

\[\mathcal{L}_{\text{CLIP}} = -\frac{1}{2N}\sum_{i=1}^{N}\left[\log\frac{e^{s_{ii}/\tau}}{\sum_{j=1}^{N} e^{s_{ij}/\tau}} + \log\frac{e^{s_{ii}/\tau}}{\sum_{j=1}^{N} e^{s_{ji}/\tau}}\right]\]

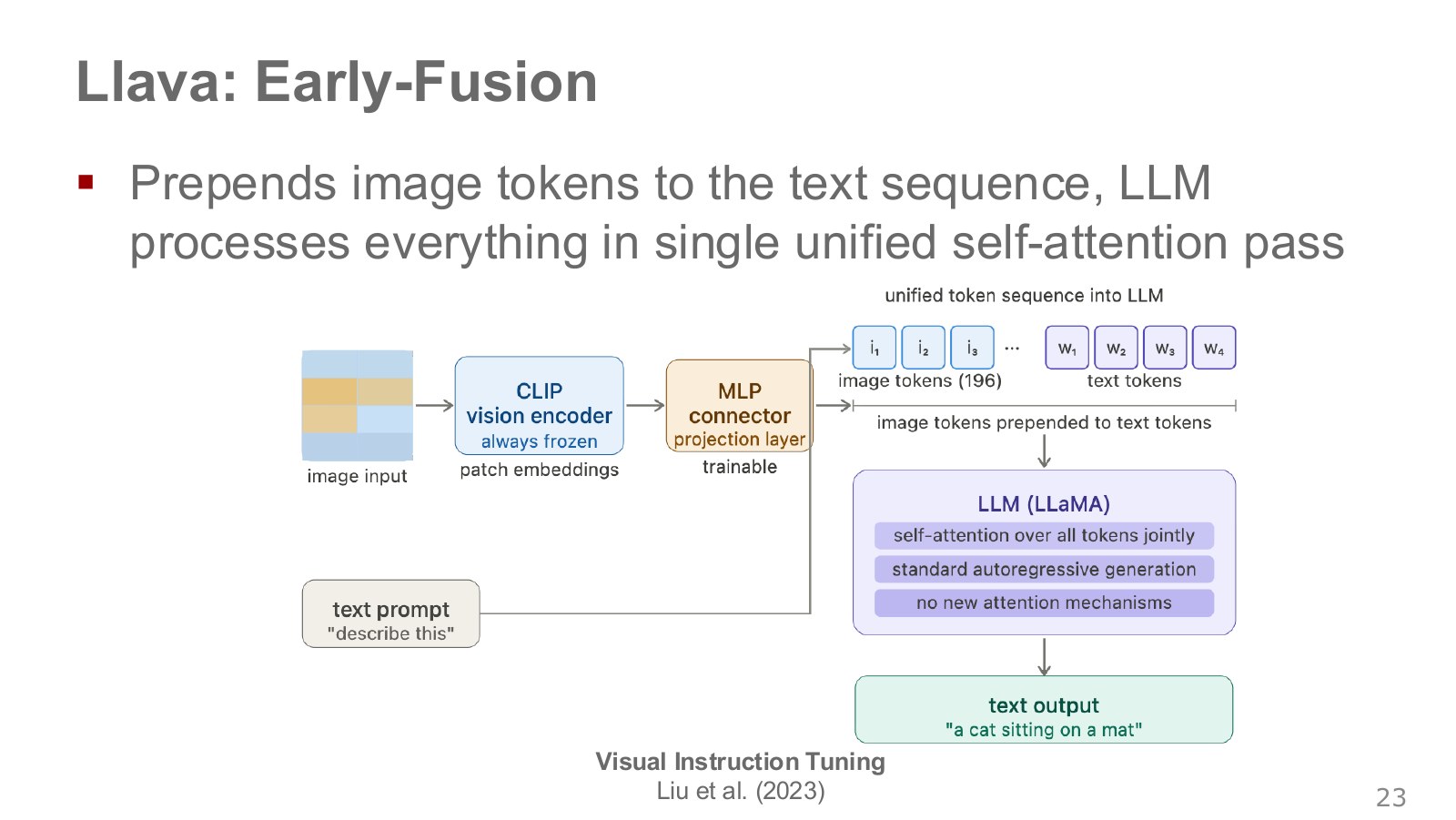

Early fusion: LLaVA (Liu et al., 2023)

LLaVA early fusion

See Visual Instruction Tuning (Liu et al., 2023).

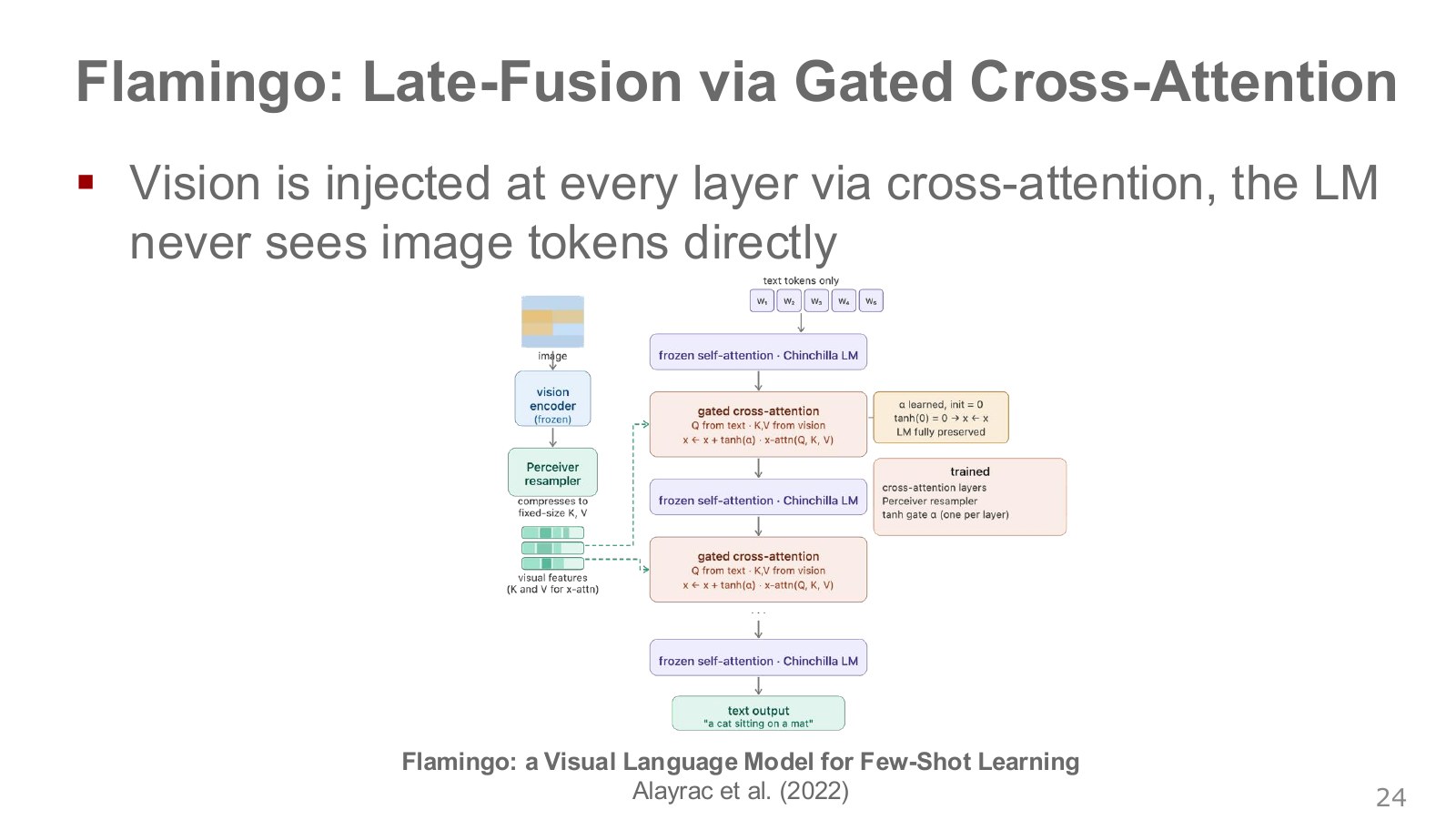

Late fusion: Flamingo (Alayrac et al., 2022)

Flamingo late fusion via gated cross-attention

See Flamingo: a Visual Language Model for Few-Shot Learning (Alayrac et al., 2022).

\[x \leftarrow x + \tanh(\alpha)\cdot \text{XAttn}(Q_{\text{text}}, K_{\text{vision}}, V_{\text{vision}})\]

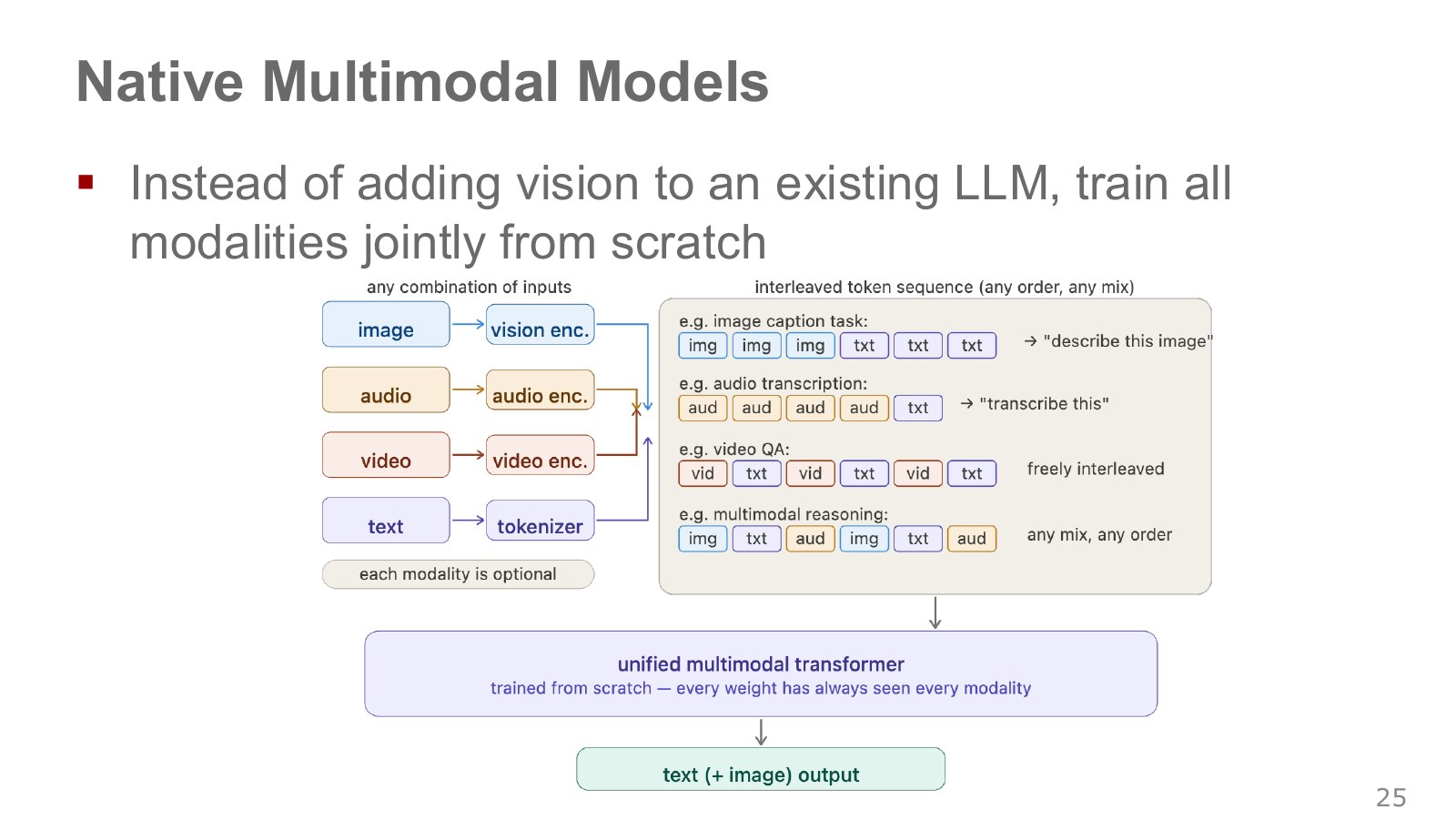

Native multimodal

Native multimodal transformer

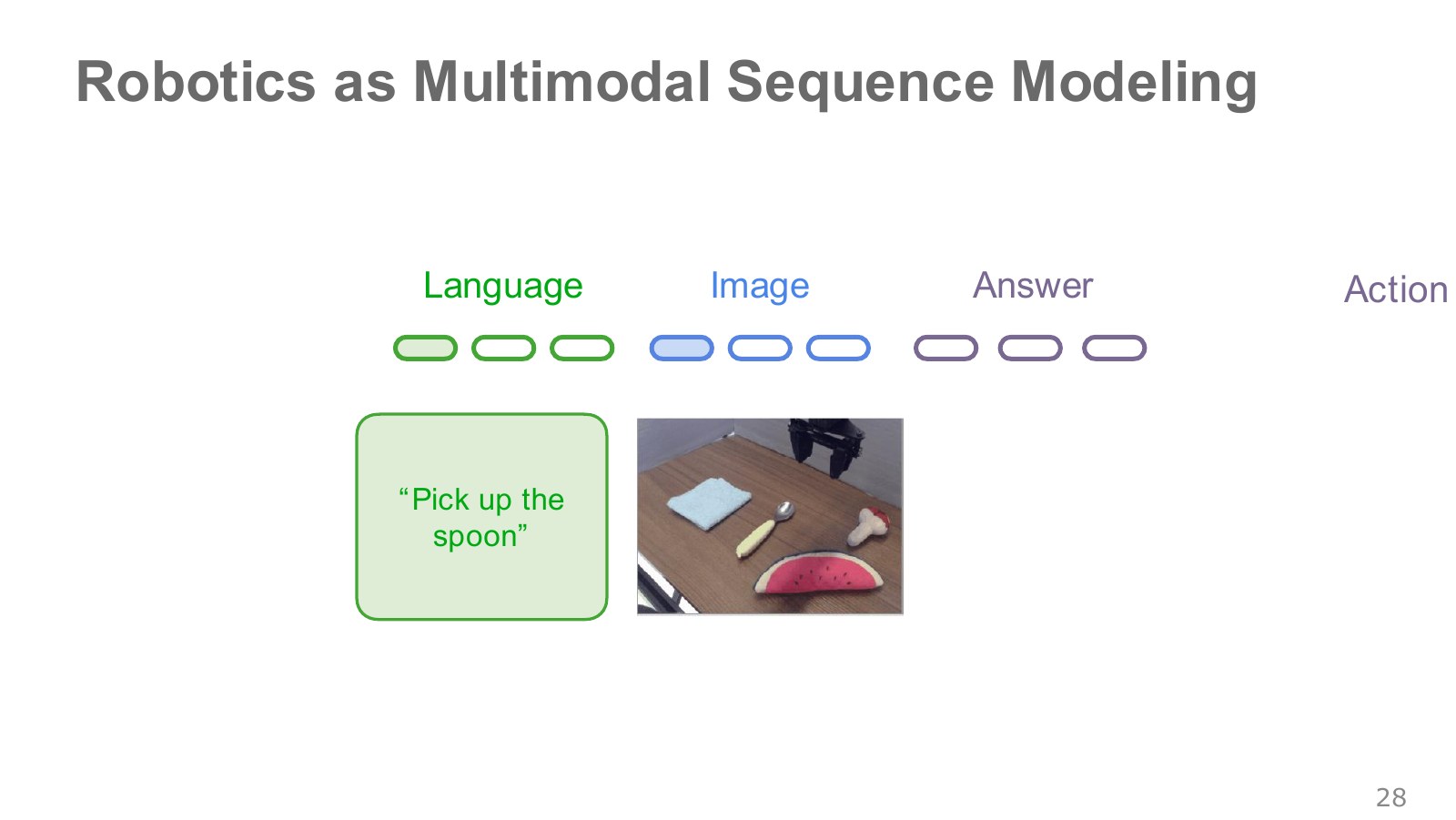

11. Robot actions as tokens (VLAs)

What is a VLA? (RT-2: Brohan et al., 2023; OpenVLA: Kim et al., 2024)

A vision-language-action model takes camera images and a language instruction (“pick up the red cup”) and outputs robot actions. The idea is to start from a pretrained vision-language model (VLM), which already understands images and text, and teach it to output actions too.

First, what is binning? Binning means splitting a continuous range of numbers into a fixed set of buckets and replacing each number with the index of its bucket. Say a gripper opening goes from 0 (closed) to 1 (open) and we use 4 bins: 0 to 0.25, 0.25 to 0.5, 0.5 to 0.75, and 0.75 to 1. A gripper value of 0.6 lands in bin 3, so we store “3” instead of 0.6. We lose a little precision, since everything inside a bin is treated as the same value, but a continuous number has become one of a few discrete labels. Discrete labels are exactly what a language model knows how to predict.

The pipeline:

  1. A vision encoder turns the camera image into tokens.
  2. The instruction is tokenized as usual.
  3. A language model backbone reads both and predicts the next tokens.
  4. Those output tokens are decoded into robot actions (for example, end-effector position, rotation, gripper open/close).

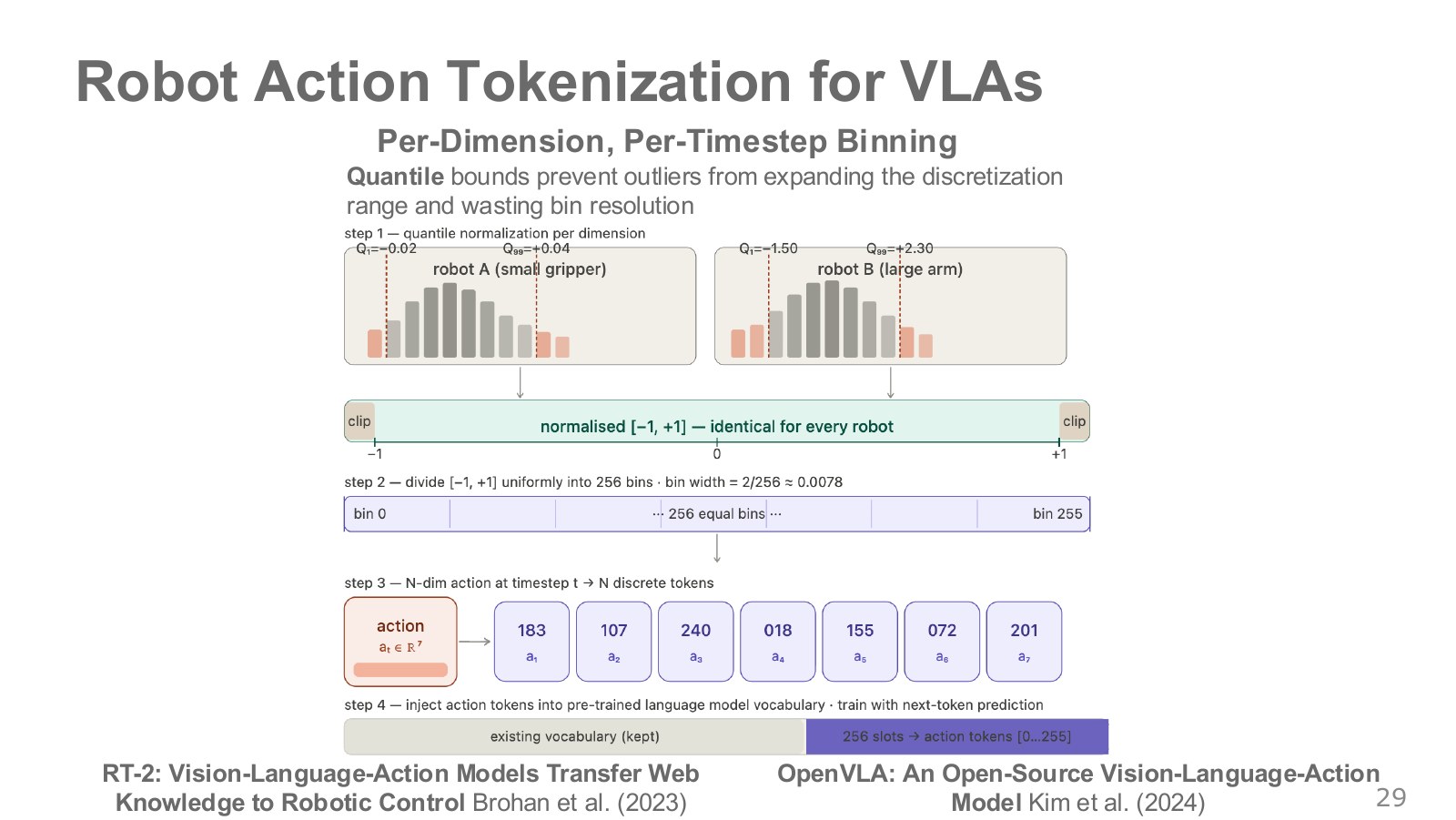

How do you get actions out of a language model? Treat actions like words. Bin each action dimension into 256 buckets, give each bucket its own token, and train with the same next-token loss used for text. This is how RT-2 and OpenVLA work.

Why bother with a VLM at all? Pretraining on internet-scale data gives the robot object recognition and language understanding for free. That is why VLAs can follow instructions they never saw in robot data, like “pick up the extinct animal” and grab the toy dinosaur.

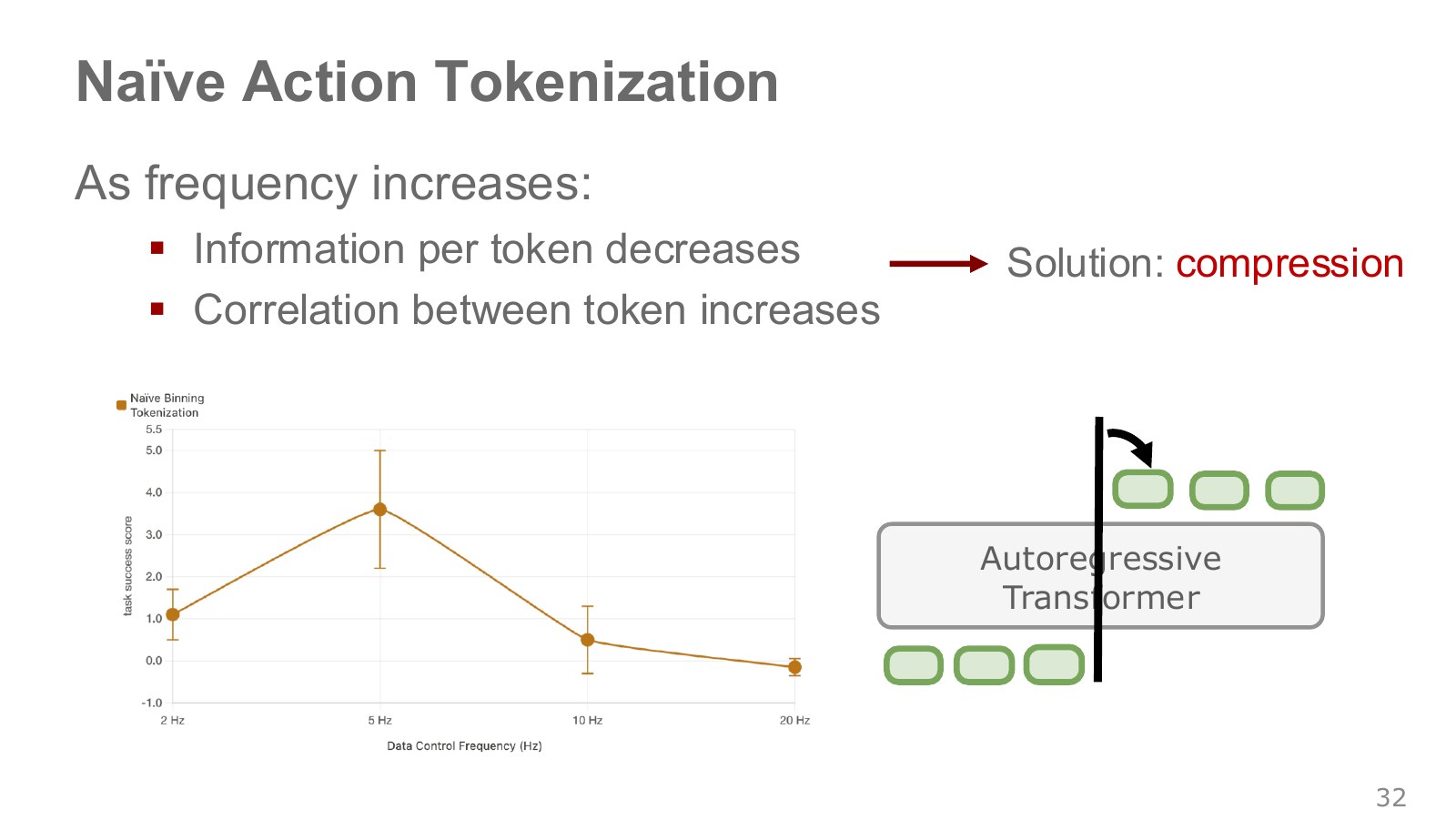

Where it falls short: binning works at low control rates but struggles when the robot needs to act fast and smoothly. Better action tokenizers (like FAST, Pertsch et al., 2025) exist for this, and we will come back to them later.

Open VLA pipeline

See OpenVLA: An Open-Source Vision-Language-Action Model (Kim et al., 2024).

Effective tokenization: DCT + BPE

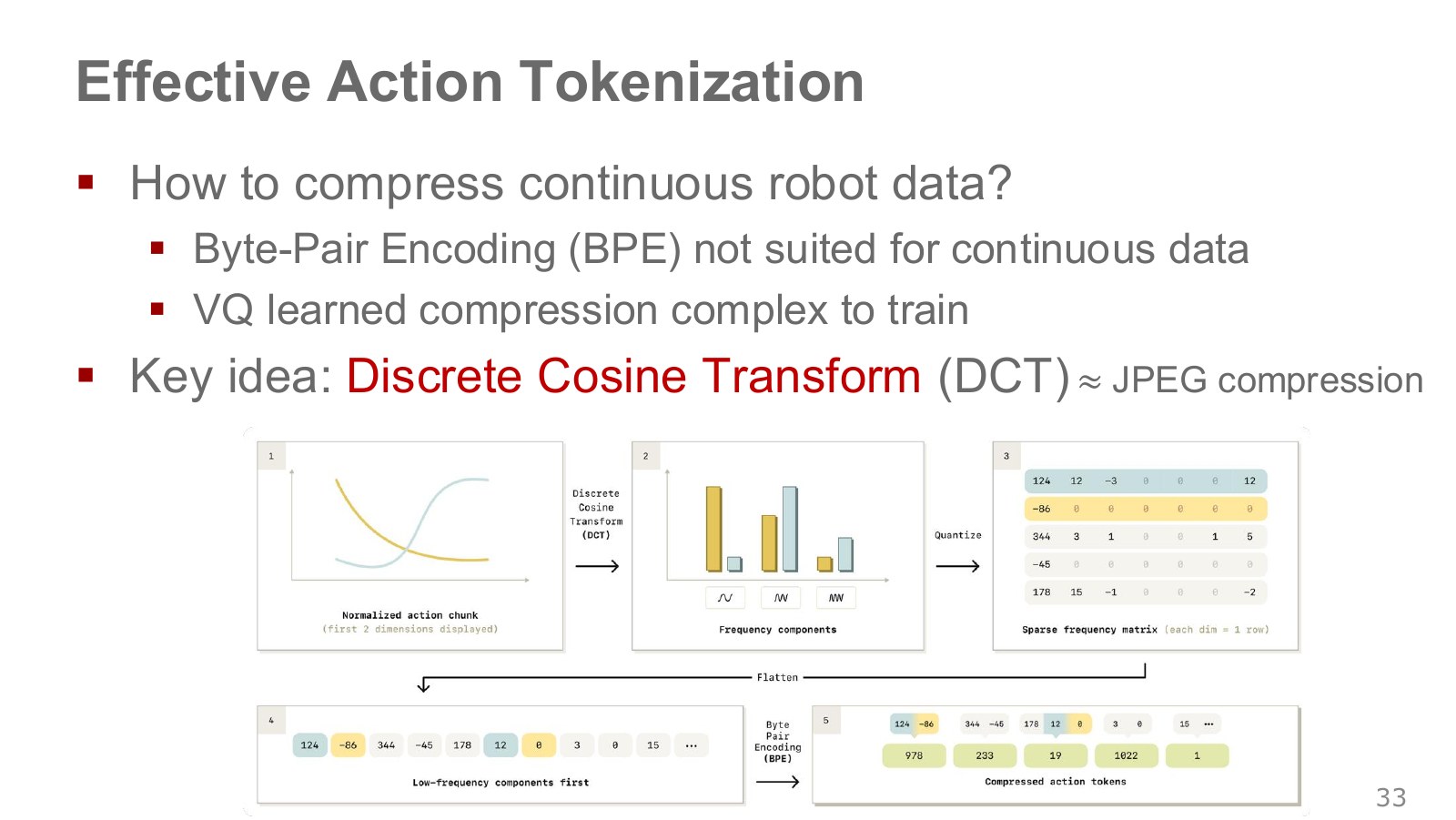

How do you compress continuous robot data? BPE alone is not suited to continuous values, and learned compression (VQ; e.g. van den Oord et al., 2017) is complex to train. Key idea: the Discrete Cosine Transform (DCT), the same idea behind JPEG. A smooth action chunk is a sum of cosines of increasing frequency, and most of the information sits in a few low-frequency coefficients:

\[c_k = \sum_{t=0}^{T-1} a_t \cos\!\left(\frac{\pi}{T}\left(t+\tfrac12\right)k\right),\qquad k = 0,\dots,T-1\]

Quantizing the coefficients to integers zeroes out most high-frequency terms. The result is a sparse integer matrix that BPE can then compress.

FAST tokenizer pipeline: DCT, quantize, flatten, BPE

See FAST: Efficient Action Tokenization for Vision-Language-Action Models (Pertsch et al., 2025).

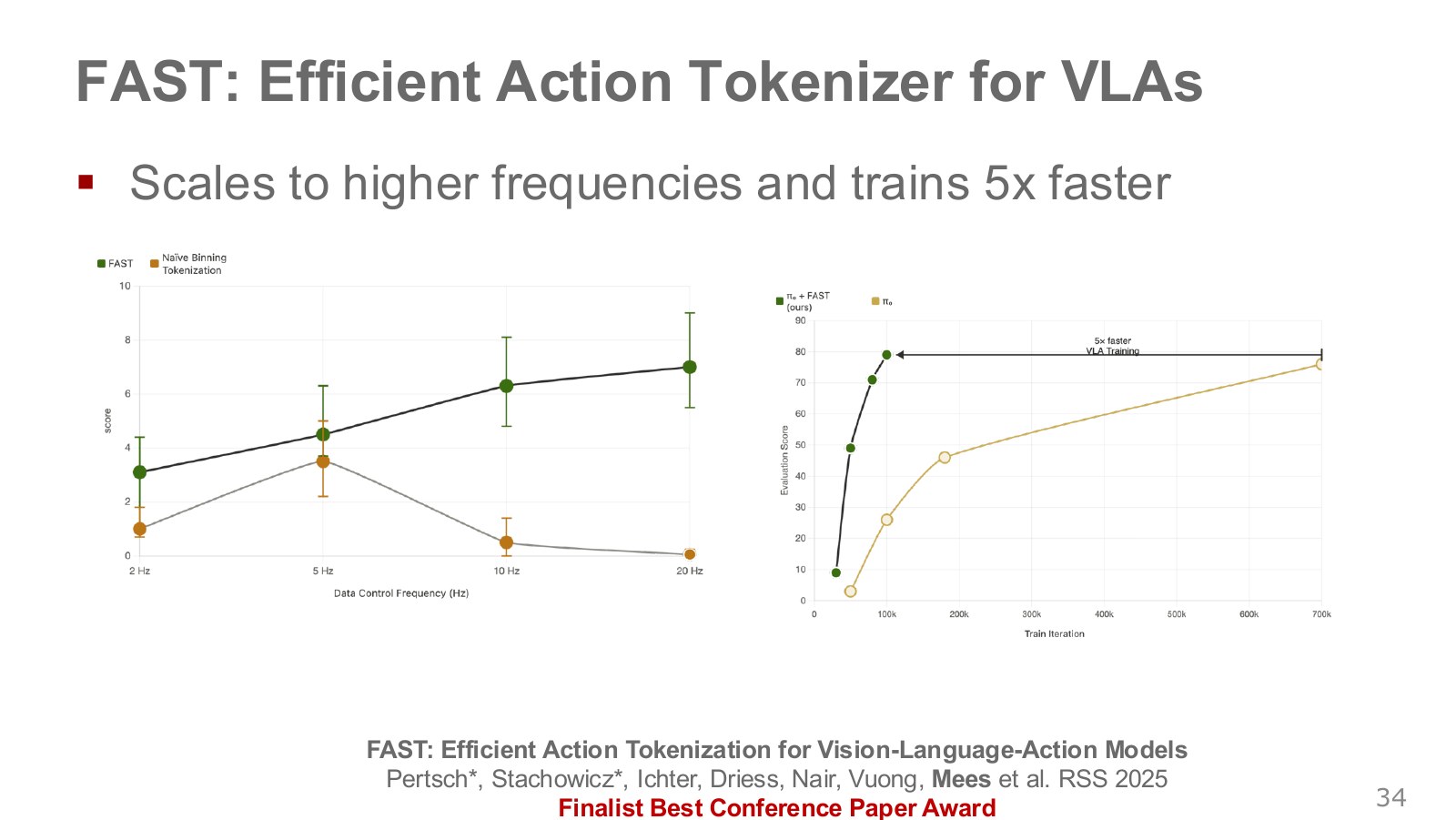

FAST (Pertsch et al., RSS 2025)

Frequency-space Action Sequence Tokenization applies the pipeline above to each action chunk (section 12): DCT per action dimension, quantize, flatten with low-frequency components first (the model predicts coarse shape before fine detail), then BPE. This gives far fewer, more informative tokens per chunk. It scales to high control frequencies where binning collapses, and trains about 5x faster than the π0 baseline (π0: Black et al., 2024).

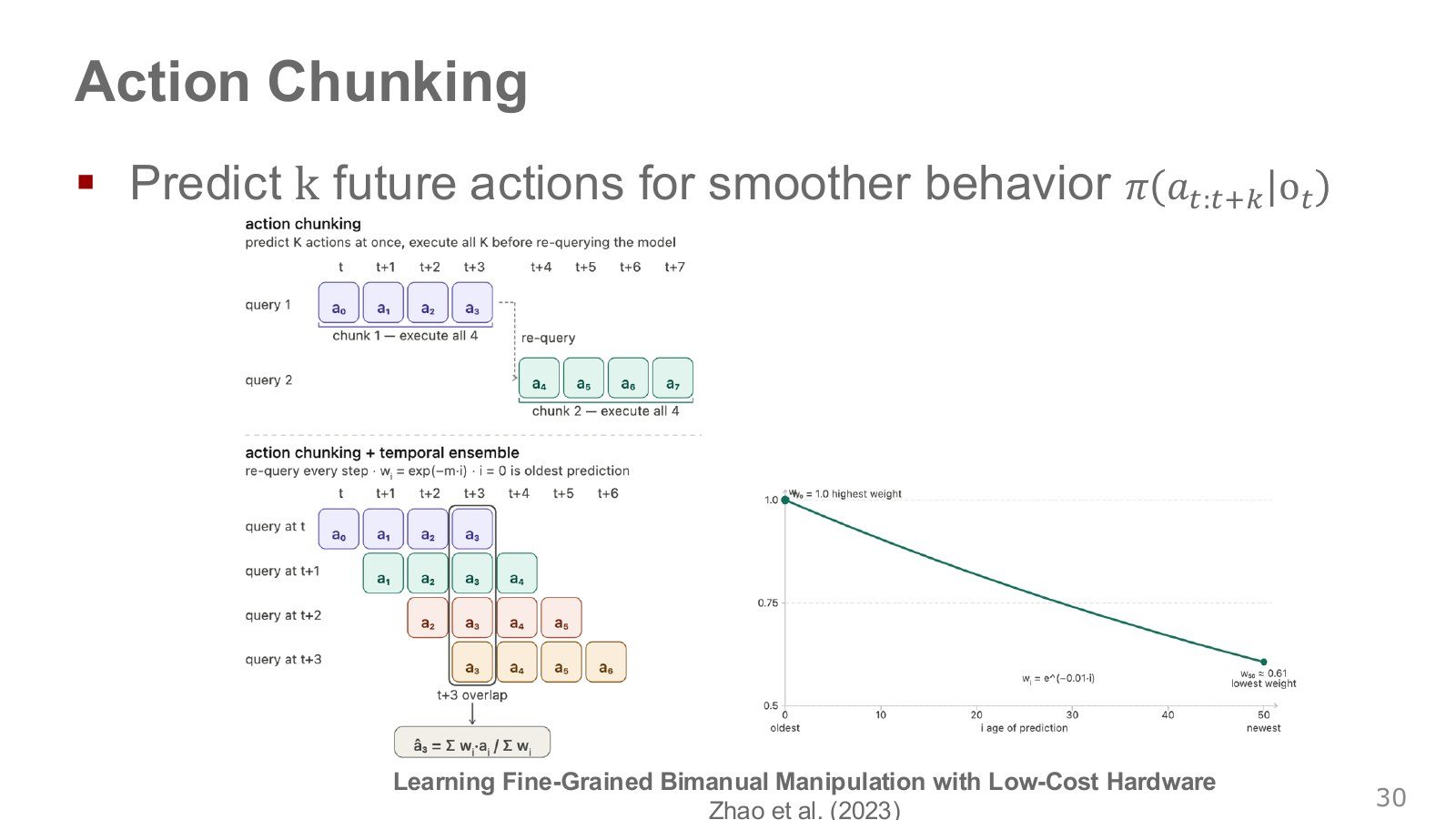

12. Action chunking

Predict the next $k$ actions as a chunk, run them, then query again. Actions are planned together, so motion is smoother.

One-step policy vs action chunking vs temporal ensembling

See Learning Fine-Grained Bimanual Manipulation with Low-Cost Hardware (Zhao et al., 2023) for action chunking and temporal ensembling.

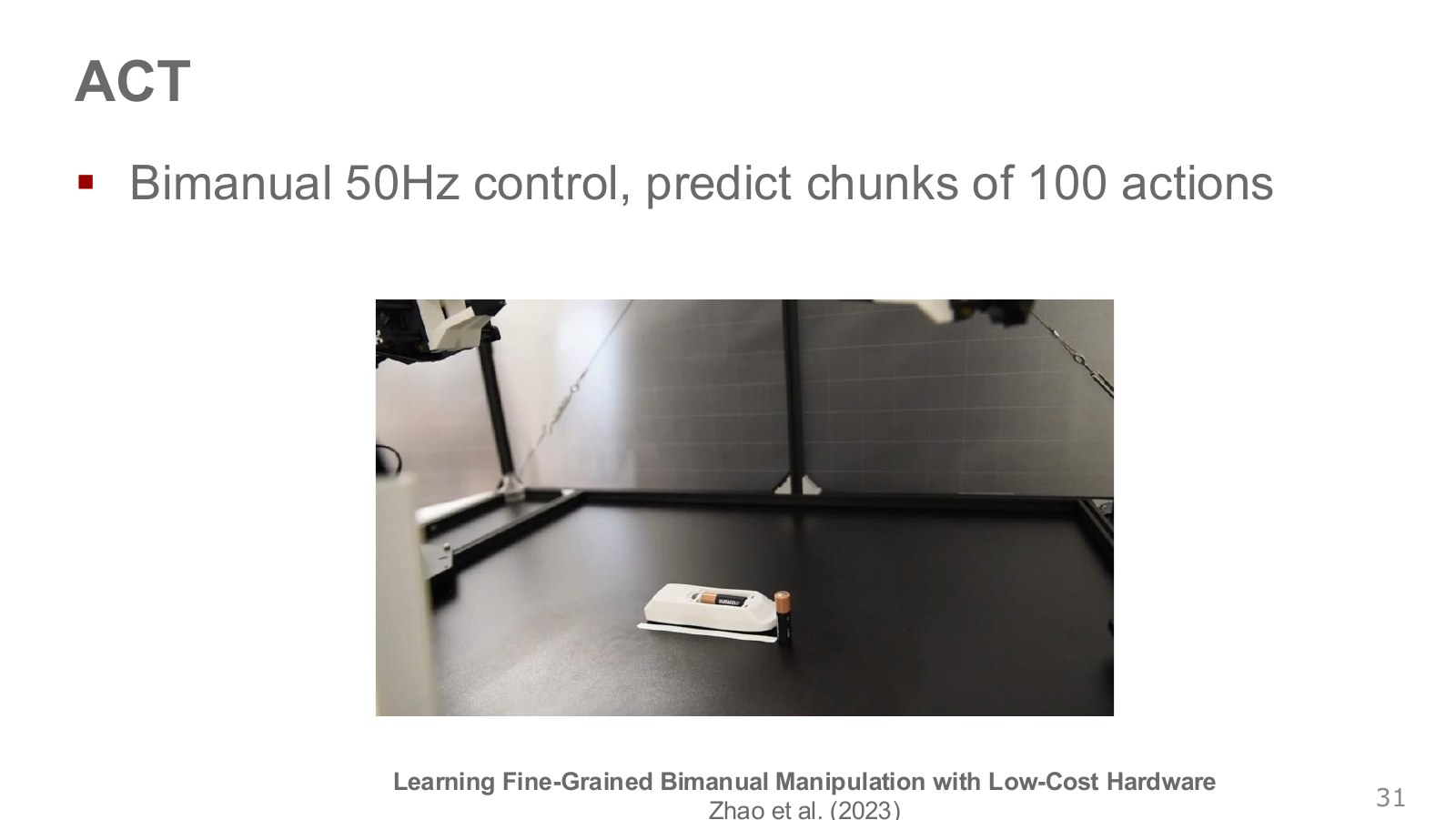

ACT: Action Chunking with Transformers (Zhao et al., 2023)

ACT architecture

See Learning Fine-Grained Bimanual Manipulation with Low-Cost Hardware (Zhao et al., 2023).

The policy that made chunking work, built for the low-cost bimanual ALOHA robot (14 joints, 50 Hz) and trained by imitation on human teleoperation demos. It is a specialist policy with no LLM, and it handles precise two-arm tasks like battery insertion, where a one-step reactive policy at 50 Hz would struggle.
