led_matrix.c File Reference

#include "led_matrix.h"
#include "led_matrix_font.h"

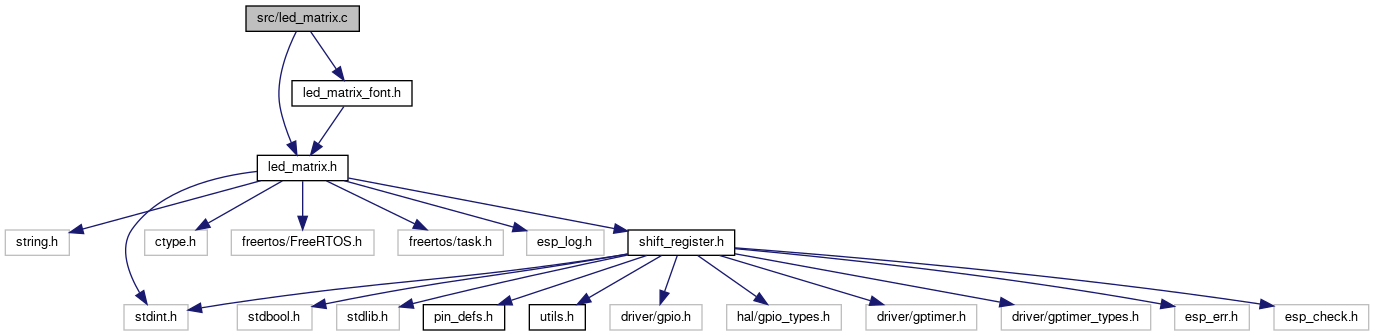

Include dependency graph for led_matrix.c:

Functions
led_matrix	led_matrix_init (void)
	Enables and configures the LED Matrix and corresponding shift registers. More...
led_matrix_data_t	bool_to_uint32 (const led_matrix_data_arr_t input_arr)
	Converts a boolean array of size CONFIG_LED_MATRIX_ROWSxCONFIG_LED_MATRIX_COLUMNS to a 32-bit unsigned integer. More...
esp_err_t	led_matrix_set_bit (led_matrix *matrix, const uint8_t logical_pin, const uint8_t led_value)
	Sets a single bit of the "data" field of the passed in matrix. More...
esp_err_t	led_matrix_set_data (led_matrix *matrix, const led_matrix_data_t data)
	Sets all the bits of the "data" field of the passed in matrix using led_matrix_set_bit(). More...
esp_err_t	led_matrix_set_data_raw (led_matrix *matrix, const led_matrix_data_t data)
	Sets all the bits of the "data" field. More...
esp_err_t	led_matrix_write (const led_matrix *matrix, const led_matrix_output_mode_t mode)
	Performs the write from the led_matrix structure to the actual LEDs on board. More...
esp_err_t	led_matrix_display_string (led_matrix *matrix, const char *message, double wait_ms)
	Displays the entered string character by character on the LED Matrix with a delay of "wait_ms" ms between characters. More...
esp_err_t	led_matrix_cleanup (led_matrix matrix)
	Performs cleanup on the LED Matrix contents. More...

Function Documentation

bool_to_uint32()

led_matrix_data_t bool_to_uint32

(

const led_matrix_data_arr_t

input_arr

)

Converts a boolean array of size CONFIG_LED_MATRIX_ROWSxCONFIG_LED_MATRIX_COLUMNS to a 32-bit unsigned integer.

Parameters

input_arr

Boolean input array of dimensions (CONFIG_LED_MATRIX_ROWS, CONFIG_LED_MATRIX_COLUMNS)

Returns

A 32-bit value representing the LED states, where each bit corresponds to one physical LED as defined by led_matrix_map.

led_matrix_cleanup()

esp_err_t led_matrix_cleanup

(

led_matrix

matrix

)

Performs cleanup on the LED Matrix contents.

Parameters

matrix

The handle to represent and use the matrix of LEDs

Returns

Returns an error if there is an error while cleaning up the shift register, else returns ESP_OK

led_matrix_display_string()

esp_err_t led_matrix_display_string	(	led_matrix *	matrix,
		const char *	message,
		double	wait_ms
	)

Displays the entered string character by character on the LED Matrix with a delay of "wait_ms" ms between characters.

Parameters

matrix	The handle to represent and use the matrix of LEDs.
message	The message to be displayed on the screen.
wait_ms	The time to wait between two characters (in ms)

Returns

Returns an error if a NULL matrix or message is passed, else returns ESP_OK

led_matrix_init()

led_matrix led_matrix_init

(

void

)

Enables and configures the LED Matrix and corresponding shift registers.

Parameters

matrix

The handle to represent and use the matrix of LEDs.

Returns

Returns an error if the could not allocate enough memory or if shift register configuration failed, else returns ESP_OK

led_matrix_set_bit()

esp_err_t led_matrix_set_bit	(	led_matrix *	matrix,
		const uint8_t	led_number,
		const uint8_t	led_value
	)

Sets a single bit of the "data" field of the passed in matrix.

Parameters

matrix	The handle to represent and use the matrix of LEDs.
led_number	The logical index of the pin (varies from [0, led_matrix_rows * led_matrix_columns - 1])
led_value	The value to set the LED (can be 0 - LOW or 1 - HIGH)

Returns

Returns an error if a NULL matrix is passed or if the led number exceeds (led_matrix_rows * led_matrix_columns - 1), else returns ESP_OK

led_matrix_set_data()

esp_err_t led_matrix_set_data	(	led_matrix *	matrix,
		const led_matrix_data_t	data
	)

Sets all the bits of the "data" field of the passed in matrix using led_matrix_set_bit().

Parameters

matrix	The handle to represent and use the matrix of LEDs.
data	The data to write to the LED matrix.

Returns

Returns an error if a NULL matrix is passed, else returns ESP_OK

led_matrix_set_data_raw()

esp_err_t led_matrix_set_data_raw	(	led_matrix *	matrix,
		const led_matrix_data_t	data
	)

Sets all the bits of the "data" field.

Parameters

matrix	The handle to represent and use the matrix of LEDs.
data	The bitfield used to set the values of the LED matrix.

Returns

Returns an error if a NULL matrix is passed, else returns ESP_OK

led_matrix_write()

esp_err_t led_matrix_write	(	const led_matrix *	matrix,
		const led_matrix_output_mode_t	mode
	)

Performs the write from the led_matrix structure to the actual LEDs on board.

Parameters

matrix	The handle to represent and use the matrix of LEDs.
mode	The way in which to display the values from the shift register.

Returns

Returns an error if a NULL matrix is passed, else returns ESP_OK
