#include "shift_register.h"

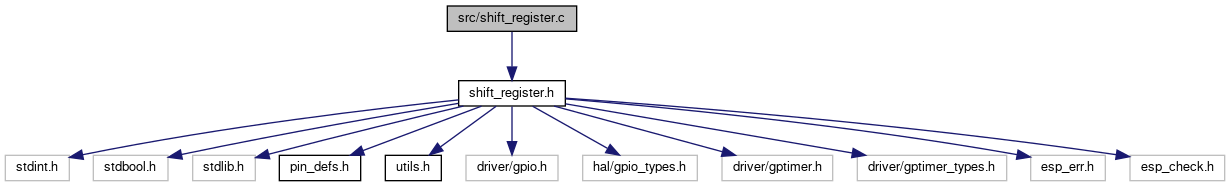

Include dependency graph for shift_register.c:
Functions | |
| esp_err_t | shift_register_gpio_init (shift_register_t *conf) |
| Initialises the GPIO Pins for the Shift Register Present on the SRA Board. More... | |
| esp_err_t | shift_register_write_uint8 (const shift_register_t *sreg, const uint8_t data, const bool instant) |
| Writes a single byte to the shift register and latches it (single shift register) More... | |
| esp_err_t | shift_register_write_uint32 (const shift_register_t *sreg, const uint32_t data, const bool instant) |
| Writes a four bytes to the shift register and latches it (four cascaded shift registers) More... | |
| esp_err_t | shift_register_cleanup (shift_register_t sreg) |
| Performs cleanup on the shift register contents. More... | |
Function Documentation
◆ shift_register_cleanup()
| esp_err_t shift_register_cleanup | ( | shift_register_t | sreg | ) |
Performs cleanup on the shift register contents.
- Parameters
-
sreg The handle to use and represent the shift register
- Returns
- Returns an error if there is an error while cleaning up the general purpose timer, else returns ESP_OK
◆ shift_register_gpio_init()
| esp_err_t shift_register_gpio_init | ( | shift_register_t * | conf | ) |
Initialises the GPIO Pins for the Shift Register Present on the SRA Board.
- Parameters
-
conf The handle to use and represent the shift registers.
- Returns
- Returns an error if NULL shift register is passed or if there is an error during configuring the GPIOs or timer, else returns ESP_OK
◆ shift_register_write_uint32()
| esp_err_t shift_register_write_uint32 | ( | const shift_register_t * | sreg, |
| const uint32_t | data, | ||
| const bool | instant | ||
| ) |
Writes a four bytes to the shift register and latches it (four cascaded shift registers)
- Parameters
-
sreg The handle to use and represent the shift registers. data The data to be sent to the shift register. instant This parameter defines the way in which the data is latched to the output register, all 8 bits at once or one-by-one.
- Returns
- Returns an error if a NULL shift register is passed, else returns ESP_OK
◆ shift_register_write_uint8()
| esp_err_t shift_register_write_uint8 | ( | const shift_register_t * | sreg, |
| const uint8_t | data, | ||
| const bool | instant | ||
| ) |
Writes a single byte to the shift register and latches it (single shift register)
- Parameters
-
sreg The handle to use and represent the shift registers. data The data to be sent to the shift register. instant This parameter defines the way in which the data is latched to the output register, all 8 bits at once or one-by-one.
- Returns
- Returns an error if a NULL shift register is passed, else returns ESP_OK
