shift_register.h File Reference

#include <stdint.h>
#include <stdbool.h>
#include <stdlib.h>
#include "pin_defs.h"
#include "utils.h"
#include "driver/gpio.h"
#include "hal/gpio_types.h"
#include "driver/gptimer.h"
#include "driver/gptimer_types.h"
#include "esp_err.h"
#include "esp_check.h"

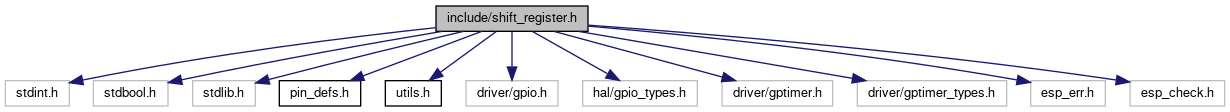

Include dependency graph for shift_register.h:

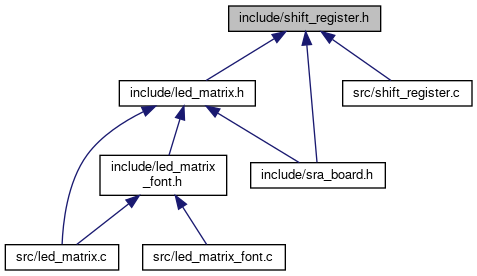

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	shift_register_t
	The handle used for representing the shift register. More...

Functions
esp_err_t	shift_register_gpio_init (shift_register_t *conf)
	Initialises the GPIO Pins for the Shift Register Present on the SRA Board. More...
esp_err_t	shift_register_write_uint8 (const shift_register_t *sreg, const uint8_t data, const bool instant)
	Writes a single byte to the shift register and latches it (single shift register) More...
esp_err_t	shift_register_write_uint32 (const shift_register_t *sreg, const uint32_t data, const bool instant)
	Writes a four bytes to the shift register and latches it (four cascaded shift registers) More...
esp_err_t	shift_register_cleanup (shift_register_t sreg)
	Performs cleanup on the shift register contents. More...

Function Documentation

shift_register_cleanup()

esp_err_t shift_register_cleanup

(

shift_register_t

sreg

)

Performs cleanup on the shift register contents.

Parameters

sreg	The handle to use and represent the shift register

Returns

Returns an error if there is an error while cleaning up the general purpose timer, else returns ESP_OK

shift_register_gpio_init()

esp_err_t shift_register_gpio_init

(

shift_register_t *

conf

)

Initialises the GPIO Pins for the Shift Register Present on the SRA Board.

Parameters

conf	The handle to use and represent the shift registers.

Returns

Returns an error if NULL shift register is passed or if there is an error during configuring the GPIOs or timer, else returns ESP_OK

shift_register_write_uint32()

esp_err_t shift_register_write_uint32	(	const shift_register_t *	sreg,
		const uint32_t	data,
		const bool	instant
	)

Writes a four bytes to the shift register and latches it (four cascaded shift registers)

Parameters

sreg	The handle to use and represent the shift registers.
data	The data to be sent to the shift register.
instant	This parameter defines the way in which the data is latched to the output register, all 8 bits at once or one-by-one.

Returns

Returns an error if a NULL shift register is passed, else returns ESP_OK

shift_register_write_uint8()

esp_err_t shift_register_write_uint8	(	const shift_register_t *	sreg,
		const uint8_t	data,
		const bool	instant
	)

Writes a single byte to the shift register and latches it (single shift register)

Parameters

sreg	The handle to use and represent the shift registers.
data	The data to be sent to the shift register.
instant	This parameter defines the way in which the data is latched to the output register, all 8 bits at once or one-by-one.

Returns

Returns an error if a NULL shift register is passed, else returns ESP_OK
